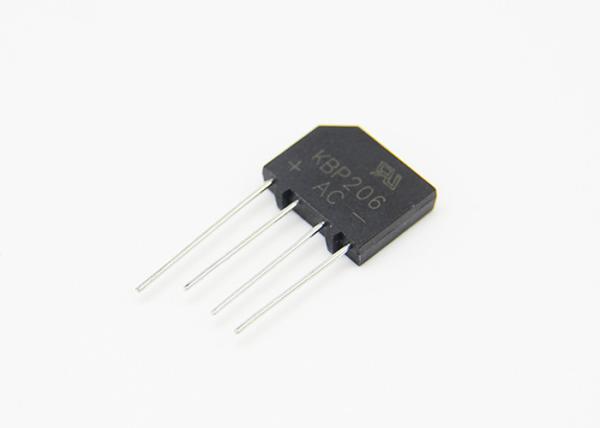

600v 4a Bridge Rectifier Diode KBP 06 KBP210 KBP208 KBP206 KBP310 KBP307

Silicon Bridge Rectifier Diode KBP06 KBP210 KBP208 KBP206 KBP310 KBP307

KBP005 THRU KBP10

SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere

PRODUCT DATASHEET

Type	IAV	VRRM	VF	IR	IFSM	Package
Type	A	V	V	uA	A	Package
KBP005	2	50	1.1	10	50	KBP
KBP01	2	100	1.1	10	50	KBP
KBP02	2	200	1.1	10	50	KBP
KBP04	2	400	1.1	10	50	KBP
KBP06	2	600	1.1	10	50	KBP
KBP08	2	800	1.1	10	50	KBP
KBP10	2	1000	1.1	10	50	KBP
KBP2005	2	50	1.1	10	50	KBP
KBP201	2	100	1.1	10	50	KBP
KBP202	2	200	1.1	10	50	KBP
KBP204	2	400	1.1	10	50	KBP
KBP206	2	600	1.1	10	50	KBP
KBP208	2	800	1.1	10	50	KBP
KBP210	2	1000	1.1	10	50	KBP
KBP3005	3	50	1.1	10	80	KBP
KBP301	3	100	1.1	10	80	KBP
KBP302	3	200	1.1	10	80	KBP
KBP304	3	400	1.1	10	80	KBP
KBP306	3	600	1.1	10	80	KBP
KBP308	3	800	1.1	10	80	KBP
KBP310	3	1000	1.1	10	80	KBP

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

This series is UL recognized component

MECHANICAL DATA

Case: Molded plastic body

Terminals: Plated leads solderable per MIL-STD-750,

Method 2026

Polarity: Polarity symbols marked on case

Mounting Position: Any

Weight:0.069 ounce, 1.95 grams

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	KBP005	KBP01	KBP02	KBP04	KBP06	KBP08	KBP10	UNITS
	SYMBOLS	KBP2005	KBP201	KBP202	KBP204	KBP206	KBP208	KBP210	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TA=50 C(Note 2)	I(AV)	2							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	50							Amps
Rating for Fusing(t<8.3ms)	I²t	10							A²s
Maximum instantaneous forward voltage drop per leg at 2.0A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	10 500							uA
Typical Junction Capacitance (Note 1)	CJ	20							pF
Typical Thermal Resistance (Note 2)	RθJA	28							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.

2.Unit mounted on P.C. board with 0.47” x 0.47”(12x12mm) copper pads,0.375”(9.5mm) lead length.

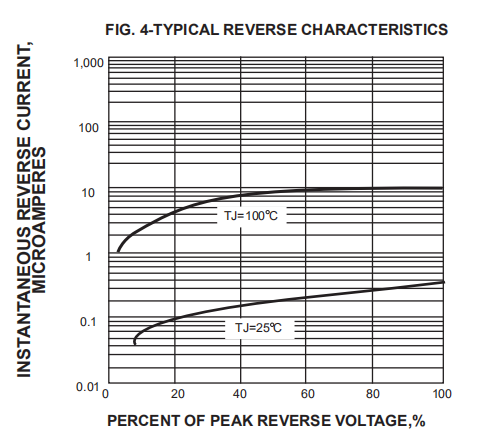

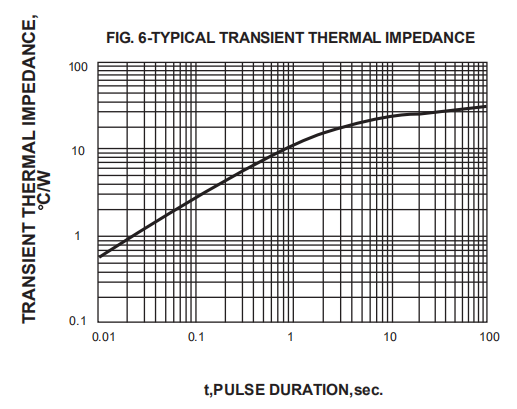

CHARACTERISTIC CURVES
