35A Single Phase Glass Passivated Silicon Bridge Rectifier Diode GBJ3510 Bridge Rectifier

GBJ35005 THRU GBJ3510

GLASS PASSIVATED BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 35 Ampere

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

This series is UL recognized component

Glass passivated chip junction

MECHANICAL DATA

Case: Molded plastic body

Terminals: Plated leads solderable per MIL-STD-750,

Method 2026

Polarity: Polarity symbols marked on case

Mounting Position: Any

Weight:0.15 ounce, 4 grams

DIMENSION

DATASHEET

Type	Forward current	Reverse voltage	Forward voltage		Reverse current	Forward surge current
	IAV	VRRM	VF	@IF	IR	IFSM
	A	V	V	A	uA	A
GBJ2005/GBJ2A	2	50	1.1	2	5	60
GBJ201/GBJ2B	2	100	1.1	2	5	60
GBJ202/GBJ2D	2	200	1.1	2	5	60
GBJ204/GBJ2G	2	400	1.1	2	5	60
GBJ206/GBJ2J	2	600	1.1	2	5	60
GBJ208/GBJ2K	2	800	1.1	2	5	60
GBJ210/GBJ2M	2	1000	1.1	2	5	60
GBJ4005/GBJ4A	4	50	1.1	4	5	120
GBJ401/GBJ4B	4	100	1.1	4	5	120
GBJ402/GBJ4D	4	200	1.1	4	5	120
GBJ404/GBJ4G	4	400	1.1	4	5	120
GBJ406/GBJ4J	4	600	1.1	4	5	120
GBJ408/GBJ4K	4	800	1.1	4	5	120
GBJ410/GBJ4M	4	1000	1.1	4	5	120
GBJ6005/GBJ6A	6	50	1.1	6	5	150
GBJ601/GBJ6B	6	100	1.1	6	5	150
GBJ602/GBJ6D	6	200	1.1	6	5	150
GBJ604/GBJ6G	6	400	1.1	6	5	150
GBJ606/GBJ6J	6	600	1.1	6	5	150
GBJ608/GBJ6K	6	800	1.1	6	5	150
GBJ610/GBJ6M	6	1000	1.1	6	5	150
GBJ8005/GBJ8A	8	50	1.1	8	5	170
GBJ801/GBJ8B	8	100	1.1	8	5	170
GBJ801/GBJ8D	8	200	1.1	8	5	170
GBJ801/GBJ8G	8	400	1.1	8	5	170
GBJ801/GBJ8J	8	600	1.1	8	5	170
GBJ801/GBJ8K	8	800	1.1	8	5	170
GBJ801/GBJ8M	8	1000	1.1	8	5	170
GBJ10005/GBJ10A	10	50	1.1	5	10	170
GBJ1001/GBJ10B	10	100	1.1	5	10	170
GBJ1002/GBJ10D	10	200	1.1	5	10	170
GBJ1004/GBJ10G	10	400	1.1	5	10	170
GBJ1006/GBJ10J	10	600	1.1	5	10	170
GBJ1008/GBJ10K	10	800	1.1	5	10	170
GBJ1010/GBJ10M	10	1000	1.1	5	10	170
GBJ15005/GBJ15A	15	50	1.1	7.5	10	200
GBJ1501/GBJ15B	15	100	1.1	7.5	10	200
GBJ1502/GBJ15D	15	200	1.1	7.5	10	200
GBJ1504/GBJ15G	15	400	1.1	7.5	10	200
GBJ1506/GBJ15J	15	600	1.1	7.5	10	200
GBJ1508/GBJ15K	15	800	1.1	7.5	10	200
GBJ1510/GBJ15M	15	1000	1.1	7.5	10	200
GBJ25005/GBJ25A	25	50	1.1	12.5	10	400
GBJ2501/GBJ25B	25	100	1.1	12.5	10	400
GBJ2502/GBJ25D	25	200	1.1	12.5	10	400
GBJ2504/GBJ25G	25	400	1.1	12.5	10	400
GBJ2506/GBJ25J	25	600	1.1	12.5	10	400
GBJ2508/GBJ25K	25	800	1.1	12.5	10	400
GBJ2510/GBJ25M	25	1000	1.1	12.5	10	400
GBJ35005/GBJ35A	35	50	1.1	17.5	10	400
GBJ3501/GBJ35B	35	100	1.1	17.5	10	400
GBJ3502/GBJ35D	35	200	1.1	17.5	10	400
GBJ3504/GBJ35G	35	400	1.1	17.5	10	400
GBJ3506/GBJ35J	35	600	1.1	17.5	10	400
GBJ3508/GBJ35K	35	800	1.1	17.5	10	400
GBJ3510/GBJ35M	35	1000	1.1	17.5	10	400

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	GBJ35005	GBJ3501	GBJ3502	GBJ3504	GBJ3506	GBJ3508	GBJ3510	UNITS
	SYMBOLS	GBJ35A	GBJ35B	GBJ35D	GBJ35G	GBJ35J	GBJ35K	GBJ35M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TA=50 C(Note 2)	I(AV)	35							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	400							Amps
Rating for Fusing(t<8.3ms)	I²t	660							A²s
Maximum instantaneous forward voltage drop per leg at 17.5A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	5 500							uA
Typical Junction Capacitance (Note 1)	CJ	85							pF
Typical Thermal Resistance (Note 2)	RθJA	1.0							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.

2.Unit mounted on 75mm x 75mm x 1.6mm Cu Plate Heatsink

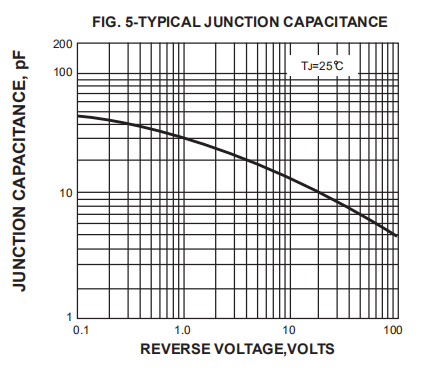

CHARACTERISTIC CURVES.
