3A Half Wave Single Phase Silicon Bridge Rectifier BR 34 BR 610 BR 68 BR 62 BR 1010 BR 5006

BR305 THRU BR310

SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,at 5 lbs. (2.3kg) tension

Available in both OJ open junction and GPP glass

passivated chip junction

This series is UL recognized component

MECHANICAL DATA

Case: JEDEC BR-3 molded plastic

Terminals: Plated leads solderable per MIL-STD-202,

Method 208

Polarity: Polarity symbols marked on case

Mounting:Thru hole for #6 screw mounting

Weight:0.093 ounce, 2.62 grams

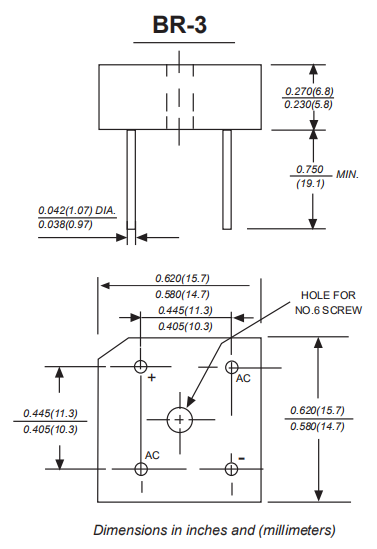

DIMENSION

DATASHEET

Type	Forward current	Reverse voltage	Forward voltage		Reverse current	Forward surge current	Package
	IAV	VRRM	VF	@IF	IR	IFSM
	A	V	V	A	uA	A
BR305	3	50	1.0	3	10	50	BR-3
BR31	3	100	1.0	3	10	50	BR-3
BR32	3	200	1.0	3	10	50	BR-3
BR34	3	400	1.0	3	10	50	BR-3
BR36	3	600	1.0	3	10	50	BR-3
BR38	3	800	1.0	3	10	50	BR-3
BR310	3	1000	1.0	3	10	50	BR-3
BR605	6	50	1.0	6	10	125	BR-6
BR61	6	100	1.0	6	10	125	BR-6
BR62	6	200	1.0	6	10	125	BR-6
BR64	6	400	1.0	6	10	125	BR-6
BR66	6	600	1.0	6	10	125	BR-6
BR68	6	800	1.0	6	10	125	BR-6
BR610	6	1000	1.0	6	10	125	BR-6
BR805	8	50	1.0	8	10	125	BR-10
BR81	8	100	1.0	8	10	125	BR-10
BR82	8	200	1.0	8	10	125	BR-10
BR84	8	400	1.0	8	10	125	BR-10
BR86	8	600	1.0	8	10	125	BR-10
BR88	8	800	1.0	8	10	125	BR-10
BR810	8	1000	1.0	8	10	125	BR-10
BR10005	10	50	1.1	5	10	150	BR-10
BR1001	10	100	1.1	5	10	150	BR-10
BR1002	10	200	1.1	5	10	150	BR-10
BR1004	10	400	1.1	5	10	150	BR-10
BR106	10	600	1.1	5	10	150	BR-10
BR1008	10	800	1.1	5	10	150	BR-10
BR1010	10	1000	1.1	5	10	150	BR-10
BR15005	15	50	1.1	7.5	10	200	BR
BR1501	15	100	1.1	7.5	10	200	BR
BR1502	15	200	1.1	7.5	10	200	BR
BR1504	15	400	1.1	7.5	10	200	BR
BR1506	15	600	1.1	7.5	10	200	BR
BR1508	15	800	1.1	7.5	10	200	BR
BR1510	15	1000	1.1	7.5	10	200	BR
BR25005	25	50	1.1	12.5	10	300	BR
BR2501	25	100	1.1	12.5	10	300	BR
BR2502	25	200	1.1	12.5	10	300	BR
BR2504	25	400	1.1	12.5	10	300	BR
BR2506	25	600	1.1	12.5	10	300	BR
BR2508	25	800	1.1	12.5	10	300	BR
BR2510	25	1000	1.1	12.5	10	300	BR
BR35005	35	50	1.1	17.5	10	400	BR
BR3501	35	100	1.1	17.5	10	400	BR
BR3502	35	200	1.1	17.5	10	400	BR
BR3504	35	400	1.1	17.5	10	400	BR
BR3506	35	600	1.1	17.5	10	400	BR
BR3508	35	800	1.1	17.5	10	400	BR
BR3510	35	1000	1.1	17.5	10	400	BR
BR50005	50	50	1.1	25	10	500	BR
BR5001	50	100	1.1	25	10	500	BR
BR5002	50	200	1.1	25	10	500	BR
BR5004	50	400	1.1	25	10	500	BR
BR5006	50	600	1.1	25	10	500	BR
BR5008	50	800	1.1	25	10	500	BR
BR5010	50	1000	1.1	25	10	500	BR

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	BR305	BR31	BR32	BR34	BR36	BR38	BR310	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TC=55 C (Note 1,2)	I(AV)	3							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	50							Amps
Rating for Fusing(t<8.3ms)	I²t	10							A²s
Maximum instantaneous forward voltage drop per leg at 3.0A	VF	1.0							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	10 1000							uA
Isolation voltage from case to leads	VISO	2500							pF
Operating temperature range	TJ	-55 to +125							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Unit mounted on 5” x 4” x3” thick(12.8cmx10.2cmx7.3cm)Al.plate.

2.Bolt dowm on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency with #6 screw.

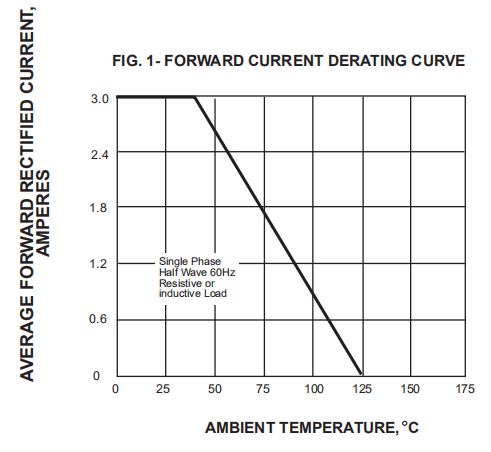

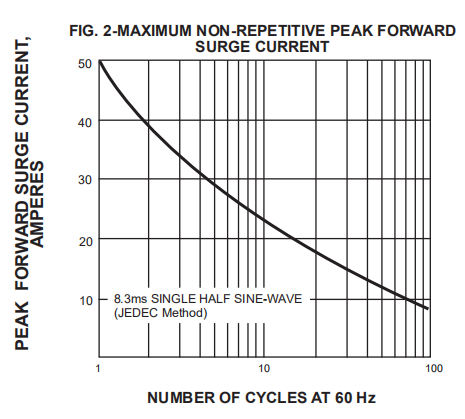

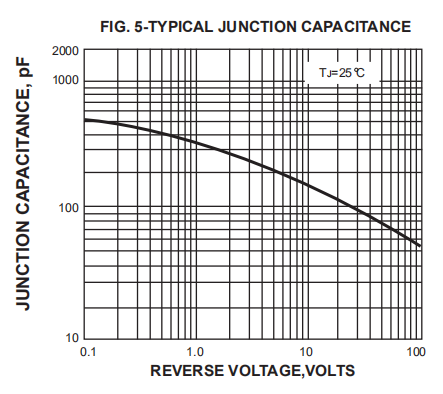

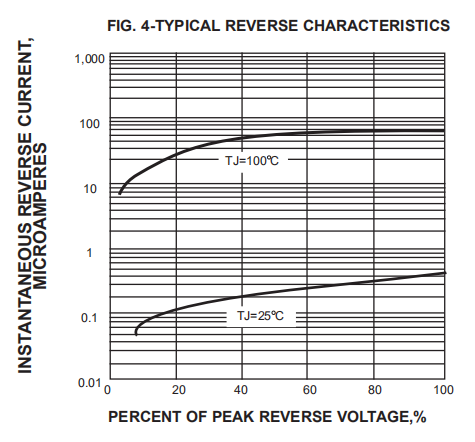

CHARACTERISTIC CURVES.
