    Smd Diode Bridge Rectifier MB10S MB8S MB6S MB10F MB6F MB10M

    SMD Single Phase Glass Passivated MINI Bridge Rectifier Diode MB10S MB8S MB6S MB10F MB6F MB10M
    MB05S THRU MB10S
    MB05F THRU MB10F
    MB05M THRU MB10M
    GLASS PASSIVATED MINI BRIDGE RECTIFIERS
    Reverse Voltage -50 to 1000Volts Forward Current -0.5/0.8Ampere
    FEATURES
    Ideal for printed circuit board
    Reliable low cost construction utilizing molded plastic technique
    High temperature soldering guaranteed: 260 /10 seconds at 5 lbs., (2.3kg) tension
    Small size, simple installation
    High surge current capability
    Glass passivated chip junction
    This series is UL recognized component
    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    MECHANICAL DATA
    Case: Molded plastic body
    Terminals: Plated leads solderable per MIL-STD-750,
    Method 2026
    Polarity: Polarity symbols marked on case
    Mounting Position: Any
    Weight:0.008 ounce, 0.22 grams

    ELECTRICAL CHARACTERISTICS
    Ratings at 25 ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%.
    SYMBOLS
    MB05S
    MB1S
    MB2S
    MB4S
    MB6S
    MB8S
    MB10S
    UNITS
    MB05F
    MB1F
    MB2F
    MB4F
    MB6F
    MB8F
    MB10F
    MB05M
    MB1M
    MB2M
    MB4M
    MB6M
    MB8M
    MB10M
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    Volts
    Maximum RMS voltage
    VRMS
    3570140280420560700
    Volts
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    Volts
    Maximum average forward rectified current at TA=30 On glass-epoxy P.C.B. (Note1)
    On aluminum substrate (Note2)
    IF(AV)

    0.5

    0.8

    Amps
    Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    30
    Amps
    Maximum instantaneous forward voltage drop per leg at 0.4A
    VF
    1.0
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=125℃
    IR

    5.0

    500

    uA
    Typical junction capactiance per leg(Note3)
    CJ
    15
    pF
    Typical thermal resistance per leg
    RθJA
    75℃/W
    Operating temperature range
    TJ
    -55 to +150
    Storage temperature range
    TSTG
    -55 to +150

    NOTES:
    1.On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads
    2.On aluminum substrate P.C.B. with on area of 0.8''x0.8''(20x20mm) mounted on 0.05X0.05''(1.3X1.3mm) solder pad
    3.Measured at 1.0MHz and applied reverse voltage of 4.0 volts.

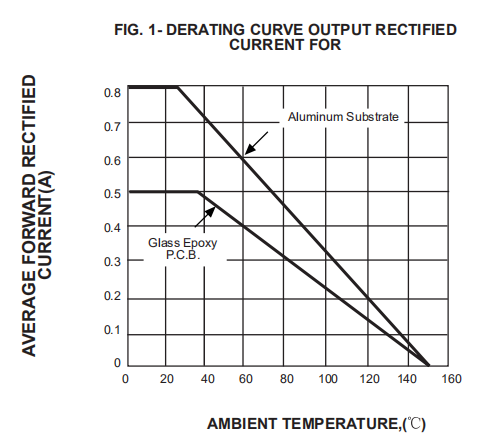

    CHARACTERISTIC CURVES
