KBPC3510 KBPC3506 KBPC3504 KBPC3502 Bridge Rectifier Kbpc 3512

Silicon Bridge Rectifier Diode KBPC3512 KBPC3510 KBPC3506 KBPC3504 KBPC3502

DATASHEET

Type	Forward current	Reverse voltage	Forward voltage		Reverse current	Forward surge current	Package
	IAV	VRRM	VF	@IF	IR	IFSM
	A	V	V	A	uA	A
KBPC10005	10	50	1.1	5	10	175	KBPC
KBPC1001	10	100	1.1	5	10	175	KBPC
KBPC1002	10	200	1.1	5	10	175	KBPC
KBPC1004	10	400	1.1	5	10	175	KBPC
KBPC106	10	600	1.1	5	10	175	KBPC
KBPC1008	10	800	1.1	5	10	175	KBPC
KBPC1010	10	1000	1.1	5	10	175	KBPC
KBPC15005	15	50	1.1	7.5	10	200	KBPC
KBPC1501	15	100	1.1	7.5	10	200	KBPC
KBPC1502	15	200	1.1	7.5	10	200	KBPC
KBPC1504	15	400	1.1	7.5	10	200	KBPC
KBPC1506	15	600	1.1	7.5	10	200	KBPC
KBPC1508	15	800	1.1	7.5	10	200	KBPC
KBPC1510	15	1000	1.1	7.5	10	200	KBPC
KBPC25005	25	50	1.1	12.5	10	300	KBPC
KBPC2501	25	100	1.1	12.5	10	300	KBPC
KBPC2502	25	200	1.1	12.5	10	300	KBPC
KBPC2504	25	400	1.1	12.5	10	300	KBPC
KBPC2506	25	600	1.1	12.5	10	300	KBPC
KBPC2508	25	800	1.1	12.5	10	300	KBPC
KBPC2510	25	1000	1.1	12.5	10	300	KBPC
KBPC35005	35	50	1.1	17.5	10	400	KBPC
KBPC3501	35	100	1.1	17.5	10	400	KBPC
KBPC3502	35	200	1.1	17.5	10	400	KBPC
KBPC3504	35	400	1.1	17.5	10	400	KBPC
KBPC3506	35	600	1.1	17.5	10	400	KBPC
KBPC3508	35	800	1.1	17.5	10	400	KBPC
KBPC3510	35	1000	1.1	17.5	10	400	KBPC
KBPC50005	50	50	1.1	25	10	600	KBPC
KBPC5001	50	100	1.1	25	10	600	KBPC
KBPC5002	50	200	1.1	25	10	600	KBPC
KBPC5004	50	400	1.1	25	10	600	KBPC
KBPC5006	50	600	1.1	25	10	600	KBPC
KBPC5008	50	800	1.1	25	10	600	KBPC
KBPC5010	50	1000	1.1	25	10	600	KBPC

KBPC35005 THRU KBPC3510

SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 35 Ampere

FEATURES

This series is UL recognized component

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,at 5 lbs. (2.3kg) tension

Glass passivated chip junction

MECHANICAL DATA

Case:Metal case

Terminals: Plated 0.25” (6.35mm)lug.

Polarity: Polarity symbols marked on case

Mounting:Thru hole for #8 screw,20in.-lbs. torque max.

Weight:1.02 ounce, 29 grams

DIMENSION

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	KBPC 35005	KBPC 3501	KBPC 3502	KBPC 3504	KBPC 3506	KBPC 3508	KBPC 3510	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TA=50 ℃(Note 1,2)	I(AV)	35							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	400							Amps
Rating for Fusing(t<8.3ms)	I²t	664							A²s
Maximum instantaneous forward voltage drop per leg at 3.0A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	10 1000							uA
Isolation voltage from case to leads	VISO	2500							pF
Typical Thermal Resistance(Note 2)	RθJA	2.0							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Unit mounted on 5” x 6” x4.9” thick(12.8cmx15.2cmx12.4cmcm)Al.plate.

2.Bolt dowm on heat-sink with silicone thermal compound between bridge and mounting surface for

maximum heat transfer efficiency with #8 screw.

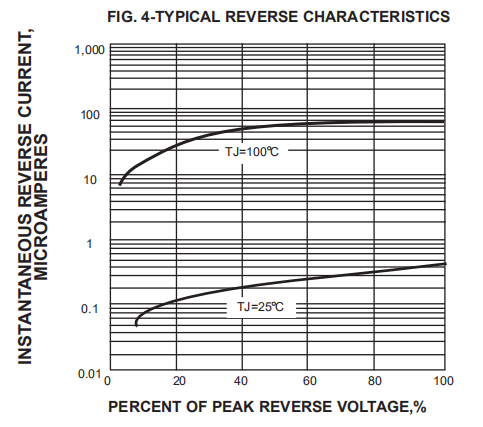

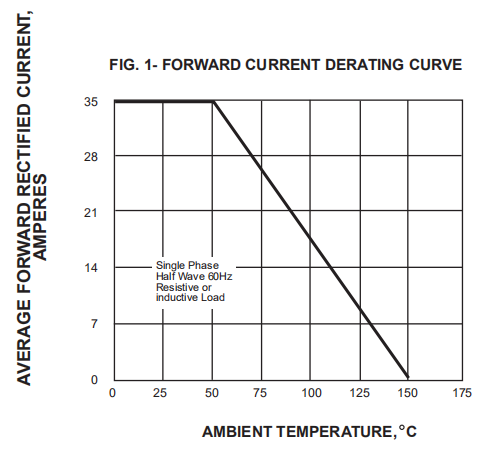

CHARACTERISTIC CURVES.
