    1.0a Glass Passivated Bridge Rectifier Db107 Db105 Db104 Df10s Df06s Df10 Df04 Df08m Df06m Df04m Df01m Df005m

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : DB107S
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    1.0a Glass Passivated Bridge Rectifier Db107 Db105 Db104 Df10s Df06s Df10 Df04 Df08m Df06m Df04m Df01m Df005m

    GLASS PASSIVATED SILICON BRIDGE RECTIFIER DIODE DB107 DB105 DB104 DF10S DF06S DF10 DF04 DF08M DF06M DF04M DF01M DF005M

    DB101 THRU DB107
    DF005 THRU DF10
    DF005M THRU DF10M
    DB101S THRU DB107S

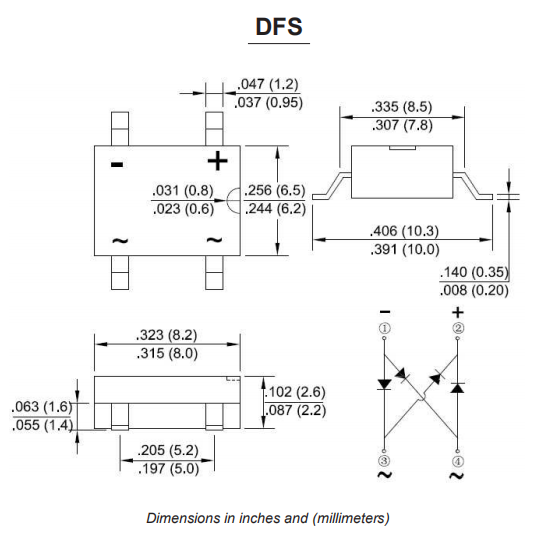

    DF005S THRU DF10S
    GLASS PASSIVATED BRIDGE RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere
    FEATURES
    Ideal for printed circuit board
    Reliable low cost construction utilizing
    molded plastic technique
    High temperature soldering guaranteed:
    250 /10 seconds / 0.375''(9.5mm)
    led length at 5 lbs., (2.3kg)tension
    Small size, simple installation
    Leads solderable per MIL-STD-202, Method 208
    High surge current capability
    Glass passivated chip junction
    This series is UL recognized component
    MECHANICAL DATA
    Case: Molded plastic body
    Terminals: Plated leads solderable per MIL-STD-750,
    Method 2026
    Polarity: Polarity symbols marked on case
    Mounting Position: Any
    Weight:0.04 ounce, 1.0 grams

    ELECTRICAL CHARACTERISTICS
    Ratings at 25 ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%.

    SYMBOLS
    DB101
    DB102
    DB103
    DB104
    DB105
    DB106
    DB107
    UNITS
    DF005
    DF01
    DF02
    DF04
    DF06
    DF08
    DF10
    DF005M
    DF01M
    DF02M
    DF04M
    DF06M
    DF08M
    DF010M
    DB101S
    DB102SDB103SDB104SDB105SDB106SDB107S
    DF005S
    DF01SDF02SDF04SDF06SDF08SDF010S
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    Volts
    Maximum RMS voltage
    VRMS
    3570140280420560700
    Volts
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    Volts
    Maximum average forward rectified current at TA=30 On glass-epoxy P.C.B. (Note1)
    On aluminum substrate (Note2)
    IF(AV)

    1

    Amps
    Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    30
    Amps
    Maximum instantaneous forward voltage drop per leg at 0.4A
    VF
    1.1
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=125℃
    IR

    10

    500

    uA
    Typical junction capactiance per leg(Note3)
    CJ
    25
    pF
    Typical thermal resistance per leg
    RθJA
    40℃/W
    Operating temperature range
    TJ
    -55 to +150
    Storage temperature range
    TSTG
    -55 to +150

    NOTES:
    1.On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads
    2.On aluminum substrate P.C.B. with on area of 0.8''x0.8''(20x20mm) mounted on 0.05X0.05''(1.3X1.3mm) solder pad
    3.Measured at 1.0MHz and applied reverse voltage of 4.0 volts.
    CHARACTERISTIC CURVES
