    1500W 47V GPP Through Hole TVS Diodes Bidirectional Esd Protection Diode 1.5KE47CA

    1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing
    Product Details
    1.5KE6.8 THRU 1.5KE440A
    TRANSIENT VOLTAGE SUPPRESSOR
    Breakdown Voltage:6.8-440 Volts
    FEATURE
    1500w peak pulse power capability
    Excellent clamping capability
    Low incremental surge resistance
    Fast response time:typically less than 1.0ps from 0v to VBR for unidirectional and 5.0ns for bidirectional types.
    High temperature soldering guaranteed: 265 ℃/10S/9.5mm lead length at 5 lbs tension
    MECHANICAL DATA
    Case: JEDEC DO-201AD molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD 750method 2026
    Polarity: Color band denotes cathode except for bidirectional types
    Mounting Position: Any
    Weight: 0.04 ounce,1.10 grams
    DEVICES FOR BIDIRECTIONAL APPLICATIONS
    For bidirectional use suffix C or CA for types 1.5KE4.8 thru 1.5KE440 (e.g. 1.5KE6.8CA, 1.5KE440CA)
    Electrical characteristics apply in both directions.
    MAXIMUM RATINGS AND CHARACTERISTICS
    Ratings at 25 C ambient temperature unless otherwise specified.
    SYMBOLS
    VALUE
    UNITS
    Peak power dissipation (Note 1)
    PPPM
    Minimum 1500
    Watts
    Peak polse reverse current (Note 1, Fig.1)
    IPPM
    See Table
    Amps
    Steady state power dissapation (Note 2)
    PM(AV)
    5.0
    Watts
    Peak forward surge current (Note 3)
    IFSM
    200
    Amps
    Maximum instantaneous forward voltage at 100A for unidirectional only (Note 4)
    VF
    3.5/5.0
    Volts
    Operating junction and storage temperature range
    TSTG,TJ
    -55 to + 175

    Notes:
    1.10/1000ms waveform non-repetitive current pulse,per Fig.3 and derated above Ta=25 C per Fig.2
    2.TL=75 C,lead lengths 9.5mm,Mounted on copper pad atea of (20x20mm)Fig.5
    3.Measured on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum.
    4.VF=3.5V max.for devices of V(BR)<200V,and VF=5.0V max.for devices of V(BR)>200V
    ELECTRICAL CHARACTERISTICS

    Device TypeStand-off VoltageBreakdown VoltageTest CurrentReverse LeakageMax. Clamp
    Voltage
    Peak Pulse Current
    VBR @ IT
    VWMMinMaxIT

    IR @ VWM

    VC @ IPPMIPPM
    UNI/BIVVVmAuAVA
    1.5KE6.8A/CA5.806.457.1410.01000.010.5
    143
    1.5KE7.5A/CA6.40
    7.13
    7.88
    10.0500.011.3
    133
    1.5KE8.2A/CA7.02
    7.79
    8.61
    10.0200.012.1
    124
    1.5KE9.1A/CA7.78
    8.65
    9.55
    1.050.013.4
    112
    1.5KE10A/CA8.55
    9.50
    10.5
    1.010.014.5
    103
    1.5KE11A/CA9.40
    10.5
    11.6
    1.05.0
    15.6
    96.2
    1.5KE12A/CA10.2
    11.4
    12.6
    1.05.0
    16.7
    89.8
    1.5KE13A/CA11.1
    12.4
    13.7
    1.05.0
    18.2
    82.4
    1.5KE15A/CA12.8
    14.3
    15.8
    1.05.0
    21.2
    70.8
    1.5KE16A/CA13.6
    15.2
    16.8
    1.05.0
    22.5
    66.7
    1.5KE18A/CA15.3
    17.1
    18.9
    1.05.0
    25.5
    59.5
    1.5KE20A/CA17.1
    19.0
    21.0
    1.05.0
    27.7
    54.2
    1.5KE22A/CA18.8
    20.9
    23.1
    1.05.0
    30.6
    49.0
    1.5KE24A/CA20.5
    22.8
    25.2
    1.05.0
    33.2
    45.2
    1.5KE27A/CA23.1
    25.7
    28.4
    1.05.0
    37.5
    40.0
    1.5KE30A/CA25.6
    28.5
    31.5
    1.05.0
    41.4
    36.2
    1.5KE33A/CA28.2
    31.4
    34.7
    1.05.0
    45.7
    32.8
    1.5KE36A/CA30.8
    34.2
    37.8
    1.05.0
    49.9
    30.1
    1.5KE39A/CA33.3
    37.1
    41.0
    1.05.0
    53.9
    27.8
    1.5KE43A/CA36.8
    40.9
    45.2
    1.05.0
    59.3
    25.3
    1.5KE47A/CA40.2
    44.7
    49.4
    1.05.0
    64.8
    23.1
    1.5KE51A/CA43.6
    48.5
    53.6
    1.05.0
    70.1
    21.4
    1.5KE56A/CA47.8
    53.2
    58.8
    1.05.0
    77.0
    19.5
    1.5KE62A/CA53.0
    58.9
    65.1
    1.05.0
    85.0
    17.6
    1.5KE68A/CA58.1
    64.6
    71.4
    1.05.0
    92.0
    16.3
    1.5KE75A/CA64.1
    71.3
    78.8
    1.05.0
    103
    14.6
    1.5KE82A/CA70.1
    77.9
    86.1
    1.05.0
    113
    13.3
    1.5KE91A/CA77.8
    86.5
    95.5
    1.05.0
    125
    12.0
    1.5KE100A/CA85.5
    95.0
    105
    1.05.0
    137
    10.9
    1.5KE110A/CA94.0
    105
    116
    1.05.0
    152
    9.9
    1.5KE120A/CA102
    114
    126
    1.05.0
    165
    9.1
    1.5KE130A/CA111
    124
    137
    1.05.0
    179
    8.4
    1.5KE150A/CA128
    143
    158
    1.05.0
    207
    7.2
    1.5KE160A/CA136
    152
    168
    1.05.0
    219
    6.8
    1.5KE170A/CA145
    162
    179
    1.05.0
    234
    6.4
    1.5KE180A/CA154
    171
    189
    1.05.0
    246
    6.1
    1.5KE200A/CA171
    190
    210
    1.05.0
    274
    5.5
    1.5KE220A/CA185
    209
    231
    1.05.0
    328
    4.6
    1.5KE250A/CA214
    237
    263
    1.05.0
    344
    4.4
    1.5KE300A/CA256
    285
    315
    1.05.0
    414
    3.6
    1.5KE350A/CA300
    332
    368
    1.05.0
    482
    3.1
    1.5KE400A/CA342
    380
    420
    1.05.0
    548
    2.7
    1.5KE440A/CA376
    418
    462
    1.05.0
    602
    2.5

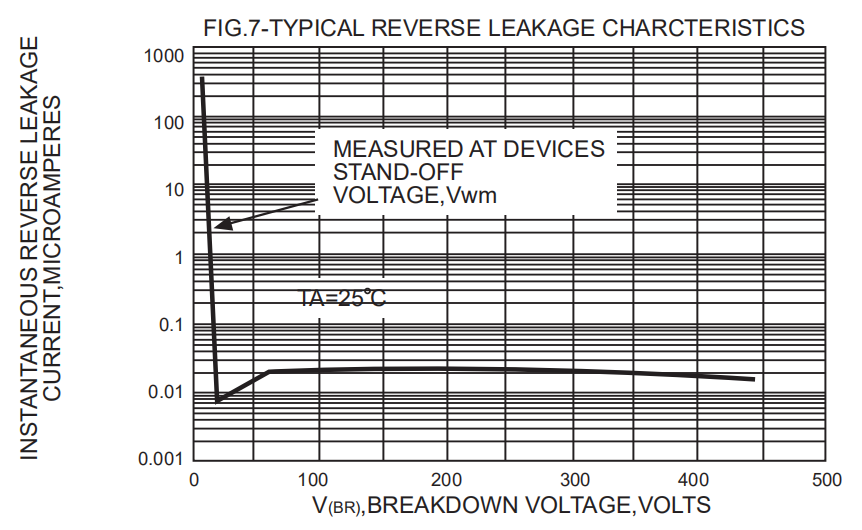

    RATINGS AND CHARACTERISTIC CURVES
