    DB6 DB4 DB3 DIAC Bidirectional Trigger Diode Surface Mount SMA SMD Reel Packing

    Surface Mount SMA DIAC Bidirectional Trigger Diode SMD DB3 DB4 DB6 Reel Packing
    DB3
    BIDIRECTIONAL TRIGGER DIODE
    Breakover Voltage - 32 Volts Power- 150mW
    Product Details
    Small glass structure ensures high reliability
    VBO:28-36V version
    Low breakover current
    High temperature soldering guaranteed
    250 C/10 seconds,0.375”(9.5mm) lead length,
    5 lbs. (2.3kg) tension
    MECHANICAL DATA
    Case: JEDEC DO-214AC molded plastic body
    Terminals: Solder plated, solderable per MIL-STD-750,
    Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.002 ounce, 0.07 grams
    MAXIMUM RATINGS AND CHARACTERISTICS
    TEST CONDITION
    SYMBOLS
    VALUE
    UNITS
    Min.Typ.Max.
    Breakover voltage
    C=22nF
    VBO
    354045
    VOLTS
    Breakover voltage symmetry
    C=22nF
    I+VBOI-I-VBOI
    -3
    3
    VOLTS
    Dynamic breakover voltage
    (NOTE 1)
    I D V ± I
    5
    VOLTS
    Output voltage
    DIAGRAM2
    VO
    5
    VOLTS
    Breakover current
    C=22nF
    IBO
    100
    mA
    Rise time
    DIAGRAM3
    tr
    1.5
    mS
    Leakage current
    VR=0.5VBO
    IB
    10
    mA

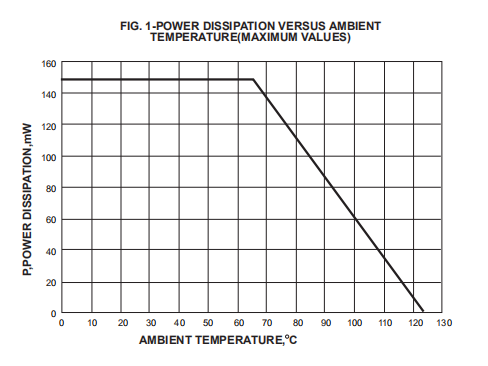

    Power dissipation on printed circuit
    TA=65 C
    Pd
    150
    mW

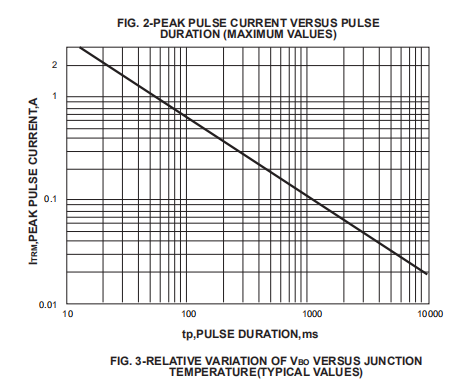

    Repetitive peak on-state current
    tp=20µs
    f=100Hz
    ITRM
    2A
    Thermal Resistances from Junction to ambient
    RQJA
    400
    ℃/W
    Thermal Resistances from Junction to lead
    RQJL
    150℃/W
    Operating junction and storage temperature range
    TJ,TSTG
    -40125

    Product Datasheet
    TypeBreakover VoltageMax. Breakover Voltage SymmetryMax. Peak Breakover CurrentMax. Dynamic Breakover VoltageMax. Peak On-state CurrentPackage
    VVμAVA
    Min.Typ.Max.
    DB3283236310052DO-35
    DB4354045310052DO-35
    DB6566370310052DO-35
    DB́8728088310052DO-35
