500W 12v Esd Transient Voltage Suppressor Diode Through Hole Sa12ca Diode

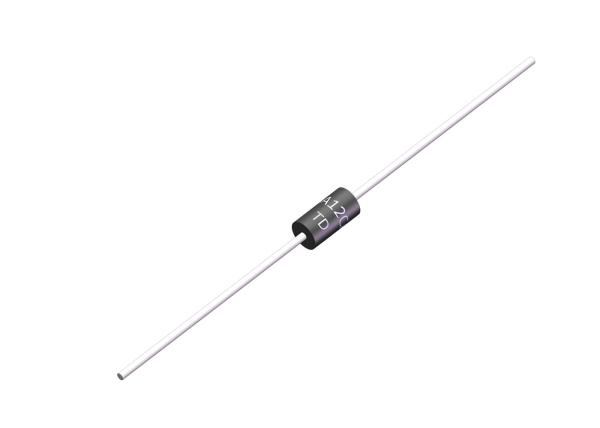

12V 500W Plastic Silicon TVS Diode SA12CA Through Hole Transient Voltage Suppressor

Product Details

SA5.0 THRU SA170A

TRANSIENT VOLTAGE SUPPRESSOR

Breakdown Voltage: 5.0-170 Volts

Peak Pulse Power: 500 Watts

Glass Passivated Axial TVS Diode SA15A 500W 15V DO-15 Unidirectional 3KPCS Ammo Box Packing 0

FEATURE

500w peak pulse power capability

Excellent clamping capability

Low incremental surge resistance

Fast response time:typically less than 1.0ps from 0v to

VBR for unidirectional and 5.0ns ror bidirectional types.

High temperature soldering guaranteed: 265 ℃/10S/9.5mm lead length at 5 lbs tension

MECHANICAL DATA

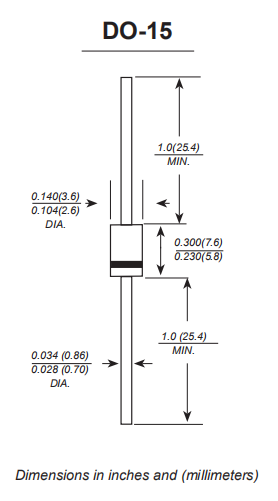

Case: JEDEC DO-15 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD 750 method 2026

Polarity: Color band denotes cathode except for bidirectional types

Mounting Position: Any

Weight: 0.014 ounce,0.40 grams

DEVICES FOR BIDIRECTIONAL APPLICATIONS

For bidirectional use C or CA suffix for types SA5.0 thru types SA170 (e.g. SA5.0CA,SA170CA).

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

	SYMBOLS	VALUE	UNITS
Peak power dissipation (Note 1)	PPPM	Minimum 500	Watts
Peak polse reverse current (Note 1, Fig.3)	IPPM	See Table	Amps
Steady state power dissapation (Note 2)	PM(AV)	1.6	Watts
Peak forward surge current (Note 3)	IFSM	70	Amps
Maximum instantaneous forward voltage at 100A for unidirectional only (Note 4)	VF	3.5	Volts
Operating junction and storage temperature range	TSTG,TJ	-55 to + 175	℃

Notes:

1.10/1000µs waveform non-repetitive current pulse,per Fig.3 and derated above Ta=25 C per Fig.2

2.TL=75 C,lead lengths 9.5mm,Mounted on copper pad atea of (40x40mm)Fig.5

3.Measured on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum

Product Datasheet

Type	Reverse Stand-off Voltage	Breakdown Voltage		Test Current	Reverse Leakage	Max. Clamp Voltage	Peak Pulse Current
		VBR @ IT		Test Current	Reverse Leakage	Max. Clamp Voltage	Peak Pulse Current
		Min	Max	IT	IR @ VRRM	VC @ IPP	IPPM
UNI/BI	VWM	V	V	mA	uA	V	A
SA5.0A/CA	5.0	6.40	7.00	10	600	9.2	54.3
SA6.0A/CA	6.0	6.67	7.37	10	600	10.3	48.5
SA6.5A/CA	6.5	7.22	7.98	10	400	11.2	44.7
SA7.0A/CA	7.0	7.78	8.60	10	150	12.0	41.7
SA7.5A/CA	7.5	8.33	9.21	1.0	50	12.9	38.8
SA8.0A/CA	8.0	8.89	9.83	1.0	25	13.6	36.8
SA8.5A/CA	8.5	9.44	10.40	1.0	10	14.4	34.7
SA9.0A/CA	9.0	10.00	11.10	1.0	5.0	15.4	32.5
SA10A/CA	10	11.10	12.30	1.0	1.0	17.0	29.4
SA11A/CA	11	12.20	13.50	1.0	1.0	18.2	27.5
SA12A/CA	12	13.30	14.70	1.0	1.0	19.9	25.1
SA13A/CA	13	14.40	15.90	1.0	1.0	21.5	23.3
SA14A/CA	14	15.60	17.20	1.0	1.0	23.2	21.6
SA15A/CA	15	16.70	18.50	1.0	1.0	24.4	20.5
SA16A/CA	16	17.80	19.70	1.0	1.0	26.0	19.2
SA17A/CA	17	18.90	20.90	1.0	1.0	27.6	18.1
SA18A/CA	18	20.00	22.10	1.0	1.0	29.2	17.1
SA20A/CA	20	22.20	24.50	1.0	1.0	32.4	15.4
SA22A/CA	22	24.40	26.90	1.0	1.0	35.5	14.1
SA24A/CA	24	26.70	29.50	1.0	1.0	38.9	12.9
SA26A/CA	26	28.90	31.90	1.0	1.0	42.1	11.9
SA28A/CA	28	31.10	34.40	1.0	1.0	45.4	11.0
SA30A/CA	30	33.30	36.80	1.0	1.0	48.4	10.0
SA33A/CA	33	36.70	40.60	1.0	1.0	53.3	9.4
SA36A/CA	36	40.00	44.20	1.0	1.0	8.6	58.1
SA40A/CA	40	44.40	49.10	1.0	1.0	7.8	64.5
SA43A/CA	43	47.80	52.80	1.0	1.0	7.2	69.4
SA45A/CA	45	50.00	55.30	1.0	1.0	6.9	72.7
SA48A/CA	48	53.30	58.90	1.0	1.0	6.5	77.4
SA51A/CA	51	56.70	62.70	1.0	1.0	6.1	82.4
SA54A/CA	54	60.00	66.30	1.0	1.0	5.7	87.1
SA58A/CA	58	64.40	71.20	1.0	1.0	5.3	93.6
SA60A/CA	60	66.70	73.70	1.0	1.0	5.2	96.8
SA64A/CA	64	71.10	78.60	1.0	1.0	4.9	103.0
SA70A/CA	70	77.80	86.00	1.0	1.0	4.4	113.0
SA75A/CA	75	83.30	92.10	1.0	1.0	4.1	121.0
SA78A/CA	78	86.70	95.80	1.0	1.0	4.0	126.0
SA85A/CA	85	94.40	104.00	1.0	1.0	3.6	137.0
SA90A/CA	90	100.00	111.00	1.0	1.0	3.4	146.0
SA100A/CA	100	111.00	123.00	1.0	1.0	3.1	162.0
SA110A/CA	110	122.00	135.00	1.0	1.0	2.8	177.0
SA120A/CA	120	133.00	147.00	1.0	1.0	2.6	193.0
SA130A/CA	130	144.00	159.00	1.0	1.0	2.4	209.0
SA150A/CA	150	167.00	185.00	1.0	1.0	2.1	243.0
SA160A/CA	160	178.00	197.00	1.0	1.0	1.9	259.0
SA170A/CA	170	189.00	209.00	1.0	1.0	1.8	275.0

NOTES:

1.V(BR)measured after IT applied for 300µs,IT=square wave pulse or equivalent

2.Surge current waveform per Fig.3 and derated per Fig.2

3.For bidirectional types having VWM of 10 volts and less,the ID limit is doubled

4.All items and symbols are consistent with ANSI/IEEE C62.35

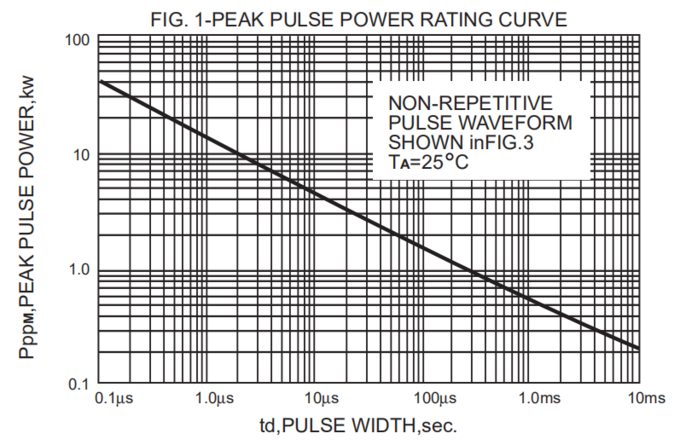

RATINGS AND CHARACTERISTIC CURVES
