Product Drawing

Characteristics at Ta = 25℃

Parameter	Symbol	Min.	Max.	Unit
Reverse Breakdown Voltage at IR = 1 µA	V(BR)R	75	-	V
Forward Voltage at IF = 1 mA at IF = 10 mA at IF = 50 mA at IF = 150 mA	VF	-	0.715 0.855 1 1.25	V
Peak Reverse Current at VR = 75 V at VR = 20 V at VR = 75 V, TJ = 150℃ at VR = 25 V, TJ = 150℃	IR	-	1 25 50 30	µA nA µA µA
Total Capacitance at VR = 0 V, f = 1 MHz	CT	-	2	pF
Reverse Recovery Time at Irr = 0.1 X IR, IF = IR = 10 mA, RL = 100 Ω	trr	-	4	ns

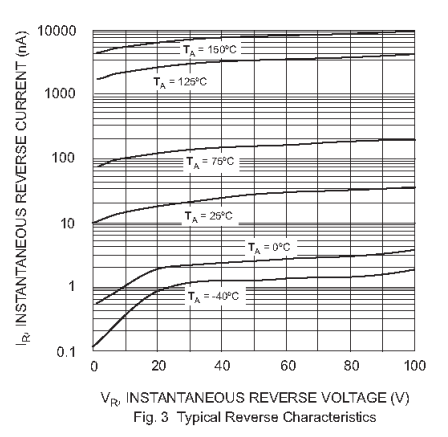

RATINGS AND CHARACTERISTIC CURVES
