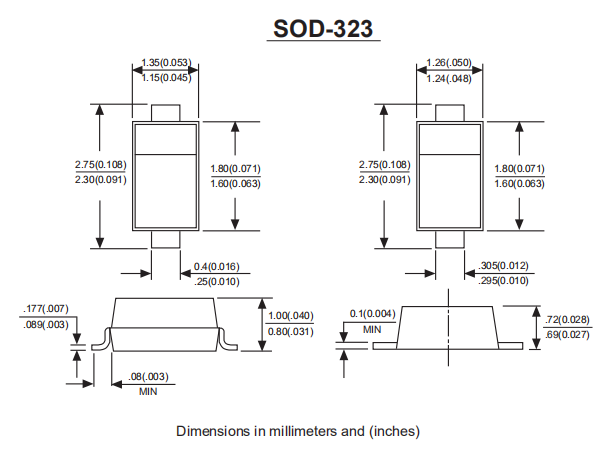

ProducT Drawing

Maximum Ratings and Electrical Characteristics

Single Diode @TA=25℃

Parameter	Symbol	Limits	Unit
Non-Repetitive Peak reverse voltage	VRM	100	V
Peak Repetitive Peak reverse voltage Working Peak Reverse Voltage DC Blocking Voltage	VRRM VRWM VR	75	V
RMS Reverse Voltage	VR(RMS)	53	V
Forward Continuous Current	IFM	300	mA
Average Rectified Output Current	IO	150	mA
Peak forward surge current @=1.0μs @=1.0s	IFSM	2.0 1.0	A
Power Dissipation	Pd	200	mW
Thermal Resistance Junction to Ambient	RθJA	625	℃/W
Junction temperature	Tj	125	℃
Storage temperature	TSTG	-65~+150	℃

Electrical Ratings @TA=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Conditions
Forward voltage	VF1	-	-	0.715	V	IF=1mA
	VF2	-	-	0.855	V	IF=10mA
	VF3	-	-	1.0	V	IF=50mA
	VF4	-	-	1.25	V	IF=150mA
Reverse current	IR1	-	-	1	μA	VR=75V
	IR2	-	-	25	nA	VR=20V
Capacitance between terminals	CT	-	-	2	pF	VR=0V,f=1MHz
Reverse Recovery Time	trr	-	-	4	ns	IF=IR=10mA Irr=0.1XIR,RL=100Ω

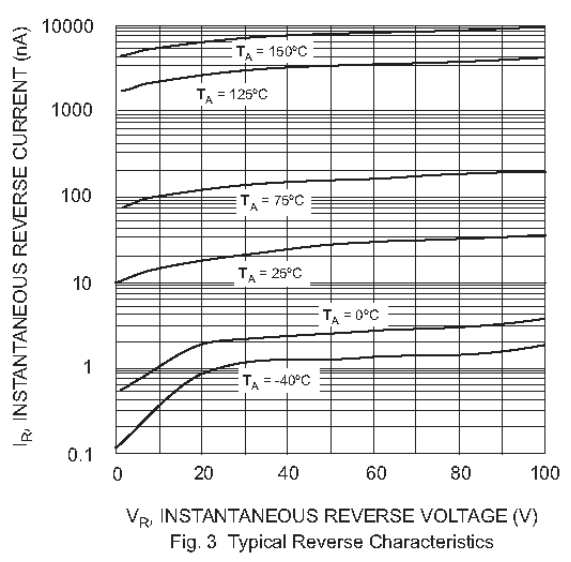

RATINGS AND CHARACTERISTIC CURVES
