    MUR 1 Amp Ultra Fast Recovery Rectifier Diode MUR120 MUR140 MUR160 200V 400V 600V

    1Amp MUR Ultra Fast Recovery Rectifier Diode MUR120 MUR140 MUR160 200V 400V 600V DO-41 Tape Packing
    MUR105 THRU MUR1100
    ULTRA FAST RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere

    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    Ratings at 25 C ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

    SYMBOLS
    MUR
    105
    MUR
    110
    MUR
    120
    MUR
    140
    MUR
    160
    MUR
    180
    MUR
    1100
    UNITS
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    VOLTS
    Maximum RMS voltage
    VRMS
    3570140280420560700
    VOLTS
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    VOLTS
    Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
    I(AV)
    1.0
    Amps
    Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    30
    Amps
    Maximum instantaneous forward voltage at 6.0A
    VF0.951.251.65
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=100℃10
    IR

    5.0

    50.0

    µA
    Maximum reverse recovery time (NOTE 1)
    trr
    255075ns
    Typical junction capacitance (NOTE 2)
    CJ
    25.0pF
    Typical thermal resistance (NOTE 3)
    RθJA
    50.0℃/W
    Operating junction and storage temperature range
    TJ,TSTG
    -55 to +150

    Note:
    1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
    2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
    3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

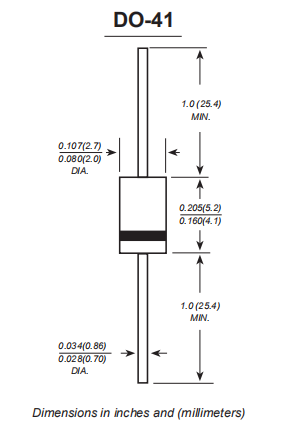

    Product Drawing


    FEATURES
    The plastic package carries Underwriters Laboratory
    Flammability Classification 94V-0
    Ultra fast switching for high efficiency
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed:
    260 C/10 seconds,0.375”(9.5mm) lead length,
    5 lbs. (2.3kg) tension
    MECHANICAL DATA
    Case: JEDEC DO-41 molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD-750,
    Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.012 ounce, 0.33 grams
