TO-220 Series Large Current Ultra Fast Recovery Rectifier Diode MUR860 MUR1060 MUR1560 MUR1660CT

TO-220 Ultra Fast Recovery Rectifier Diode

Features

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	MUR 1005 CT	MUR 1010 CT	MUR 1020 CT	MUR 1040 CT	MUR 1060 CT	MUR 1080 CT	MUR 10100 CT	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	1.0							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	100							Amps
Maximum instantaneous forward voltage at 6.0A	VF	1.0			1.3		1.7		Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10	IR	5.0 50.0							µA
Maximum reverse recovery time (NOTE 1)	trr	25			50		75		ns
Typical thermal resistance (NOTE 2)	RθJA	3.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-55 to +175							℃

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Thermal resistance from junction to case.

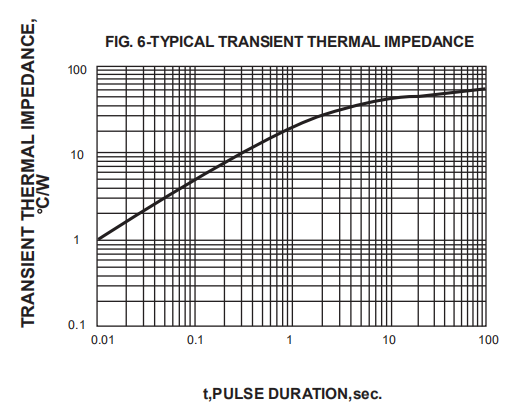

RATINGS AND CHARACTERISTIC CURVES
