    Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : SS24
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode

    ROHS Compliant Surface Mount Schottky Barrier Rectifier Diode SS24 SS26 SS210 2A 40V 60V 100V
    SS22 THRU SS220
    SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Volts
    Forward Current - 2.0 Ampere
    Features
    Metal silicon junction, majority carrier conduction
    High surge capability
    High temperature soldering guaranteed: 260°C/10 seconds
    High current capability, low forward voltage drop
    Guarding for over voltage protection
    RoHS Compliant
    Mechanical Data
    Case: SMB molded plastic
    Molding compound, UL flammability classification rating 94V-0
    Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102
    Polarity: Color band denotes cathode end
    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    SYMBOLSSS22SS23SS24SS25SS26SS28SS210SS215SS220UNITS
    Reverse VoltageVRRM203040506080100150200VOLTS
    Forward CurrentIAV2Amp
    Surge CurrentIFSM50Amps
    Forward VoltageVF0.550.700.850.95Volts
    Reverse CurrentIR0.50.2mA
    Operating TemperatureTJ-65 to +125-65 to +150

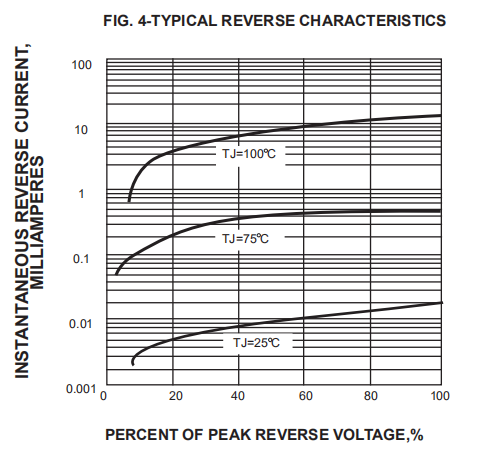

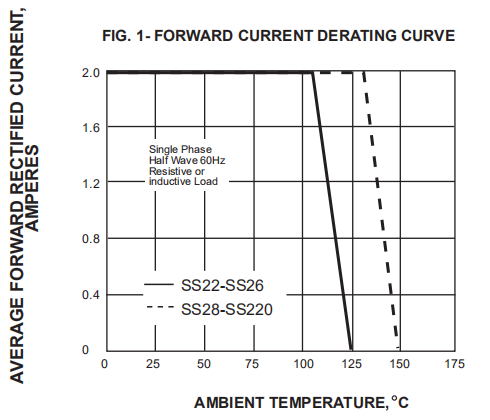

    Ratings and Characteristic Curves

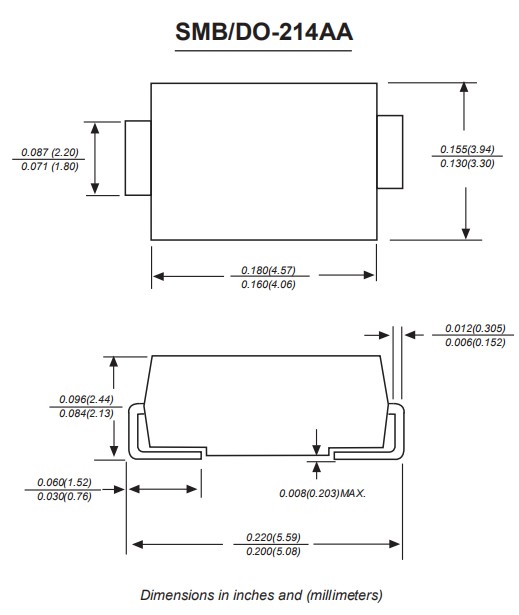

    Package Outline Dimensions
