    3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : SS34
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package

    SS34 SS36 SS310 3A SMD Schottky Barrier Rectifier Diode SMC DO-214AB Package Lead Free
    S32 THRU SS320
    SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Volts
    Forward Current - 3.0 Ampere
    Package Outline Dimensions(unit:mm)
    Mounting Pad Layout(unit:mm)
    Features
    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    For surface mounted applications
    Metal silicon junction,majority carrier conduction
    Low power loss,high efficiency
    Built-in strain relief,ideal for automated placement
    High forward surge current capability
    High temperature soldering guaranteed: 250 ℃/10 seconds at terminals
    Mechanical Data
    Case: JEDEC DO-214AB molded plastic body
    Terminals: leads solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight: 0.007 ounce, 0.25 grams
    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    SYMBOLSSS32SS33SS34SS35SS36SS38SS310SS315SS320UNITS
    Reverse VoltageVRRM203040506080100150200VOLTS
    Forward CurrentIAV3Amp
    Surge CurrentIFSM100Amps
    Forward VoltageVF0.550.700.850.95Volts
    Reverse CurrentIR0.51mA
    Operating TemperatureTJ-65 to +125-65 to +150
    Storage Temperature
    TSTG
    -65 to +150

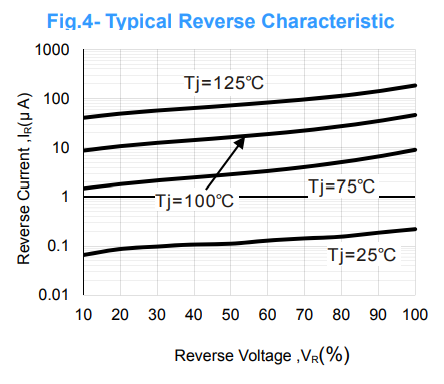

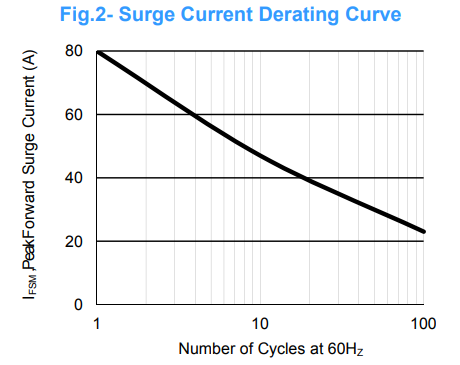

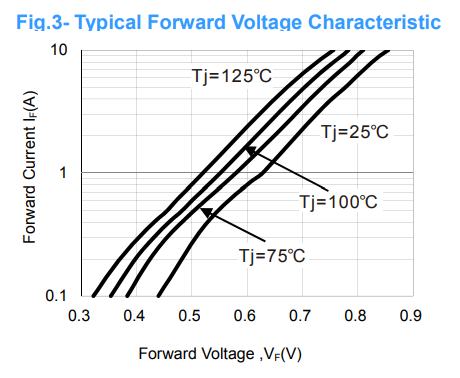

    Ratings and Characteristic Curves
