SMD TVS Diode SMBJ30CA SMB Package 600W 30V Bidirectional Transient
Voltage Suppressor
About Trustec Diode:
Trustec Company is professional manufacturer and supplier of diodes.
Main products include standard silicon rectifier diode, fast
recovery rectifier diode, high efficiency rectifier diode, ultra
fast recovery rectifier diode, super fast recovery rectifier diode,
small signal high speed switching diode, schottky barrier rectifier
diode, zener diode, TVS, DIAC, various bridge rectifier etc.
The annual capacity is up to 10,000,000,000pcs diodes .
Product Description
SMBJ series transient voltage suppressors are excellent overvoltage
protective devices.
The Series is designed specifically to protect sensitive electronic
equipment from voltage transients induced by lightning and other
transient voltage events.
Product Features
Excellent clamping capability
Low leakage current
Low capacitance
Low incremental surge resistance
High surge capability
Glass passivated chip
Epoxy resin package
Will not fatigue
RoHS Compliant
High temperature soldering guaranteed: 250°C/10 seconds at
terminals
Very fast response time: typically less than 1.0ps from 0 Volts to
VBR min
Low profile package with built-in strain relief for surface mounted
applications
600W peak pulse power capability with a 10/1000μs Wave form,
repetition rate (duty cycle): 0.01%
Electrical Characteristics
| Type | Reverse Stand-off Voltage | Breakdown Voltage | Test Current | Reverse Leakage | Max. Clamp
Voltage | Peak Pulse Current | Marking Code |
| VBR @ IT |
| Min | Max | IT | IR @ VRRM | VC @ IPP | IPP |
| UNI/BI | V | V | V | mA | uA | V | A | UNI | BI |
| SMBJ5.0A/CA | 5 | 6.4 | 7 | 10 | 800 | 9.2 | 65.3 | KE | AE |
| SMBJ6.0A/CA | 6 | 6.67 | 7.37 | 10 | 800 | 10.3 | 58.3 | KG | AG |
| SMBJ6.5A/CA | 6.5 | 7.22 | 7.98 | 10 | 500 | 11.2 | 53.6 | KK | AK |
| SMBJ7.0A/CA | 7 | 7.78 | 8.6 | 10 | 200 | 12 | 50 | KM | AM |
| SMBJ7.5A/CA | 7.5 | 8.33 | 9.21 | 1 | 100 | 12.9 | 46.6 | KP | AP |
| SMBJ8.0A/CA | 8 | 8.89 | 9.83 | 1 | 50 | 13.6 | 44.2 | KR | AR |
| SMBJ8.5A/CA | 8.5 | 9.44 | 10.4 | 1 | 20 | 14.4 | 41.7 | KT | AT |
| SMBJ9.0A/CA | 9 | 10 | 11.1 | 1 | 10 | 15.4 | 39 | KV | AV |
| SMBJ10A/CA | 10 | 11.1 | 12.3 | 1 | 5 | 17 | 35.3 | KX | AX |
| SMBJ11A/CA | 11 | 12.2 | 13.5 | 1 | 1 | 18.2 | 33 | KZ | AZ |
| SMBJ12A/CA | 12 | 13.3 | 14.7 | 1 | 1 | 19.9 | 30.2 | LE | BE |
| SMBJ13A/CA | 13 | 14.4 | 15.9 | 1 | 1 | 21.5 | 28 | LG | BG |
| SMBJ14A/CA | 14 | 15.6 | 17.2 | 1 | 1 | 23.2 | 25.9 | LK | BK |
| SMBJ15A/CA | 15 | 16.7 | 18.5 | 1 | 1 | 24.4 | 24.6 | LM | BM |
| SMBJ16A/CA | 16 | 17.8 | 19.7 | 1 | 1 | 26 | 23.1 | LP | BP |
| SMBJ17A/CA | 17 | 18.9 | 20.9 | 1 | 1 | 27.6 | 21.8 | LR | BR |
| SMBJ18A/CA | 18 | 20 | 22.1 | 1 | 1 | 29.2 | 20.6 | LT | BT |
| SMBJ20A/CA | 20 | 22.2 | 24.5 | 1 | 1 | 32.4 | 18.6 | LV | BV |
| SMBJ22A/CA | 22 | 24.4 | 26.9 | 1 | 1 | 35.5 | 16.9 | LX | BX |
| SMBJ24A/CA | 24 | 26.7 | 29.5 | 1 | 1 | 38.9 | 15.5 | LZ | BZ |
| SMBJ26A/CA | 26 | 28.9 | 31.9 | 1 | 1 | 42.1 | 14.3 | ME | CE |
| SMBJ28A/CA | 28 | 31.1 | 34.4 | 1 | 1 | 45.4 | 13.3 | MG | CG |
| SMBJ30A/CA | 30 | 33.3 | 36.8 | 1 | 1 | 48.4 | 12.4 | MK | CK |
| SMBJ33A/CA | 33 | 36.7 | 40.6 | 1 | 1 | 53.3 | 11.3 | MM | CM |
| SMBJ36A/CA | 36 | 40 | 44.2 | 1 | 1 | 58.1 | 10.4 | MP | CP |
Mechanical Characteristics

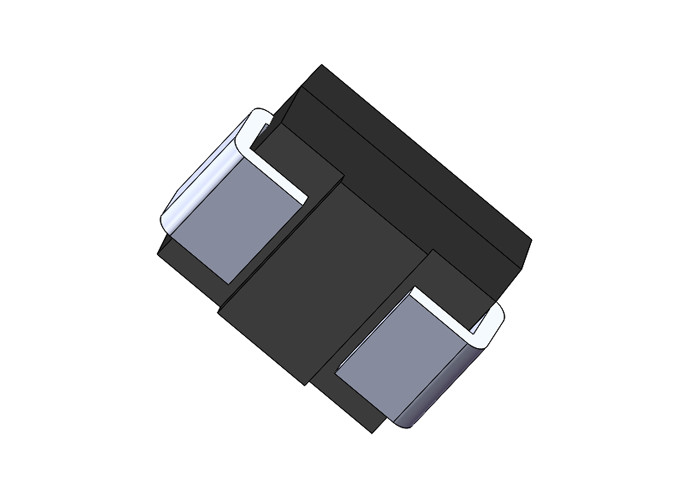

Package: SMB plastic package.
Lead Finish: Matte Tin
Case Material: Epoxy Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Rating And Characteristic Curves
Product Applications
Telecom
Computer
Industrial electronic
Consumer electronic
