Product Description
SM8SxxxXX Series transient voltage suppressors are excellent
overvoltage protective devices.
The Series is designed specifically to protect sensitive electronic
equipment from voltage transients induced by lightning and other
transient voltage events.
Product Features
Surface mount package
Excellent clamping capability
Glass passivated junction
Fast response time: Less than 1 ns forUni-direction, From 0 Volts
to BV min
Plastic material has UL flammability classification 94V-O
RoHS compliant in lead-free versions
Ideally suited for load dump protection
High temperature stability
Integrally molded heatsink provides a very low thermal resistance
for maximum heat dissipation
Low leakage current
High temperature soldering guaranteed: 260°C for 10 seconds at
terminals
Low forward voltage drop

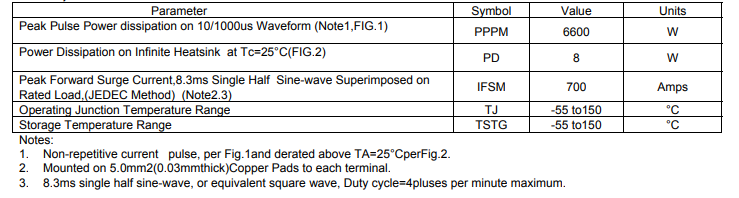

Electrical Characteristics
| Type | Reverse Stand-off Voltage | Breakdown Voltage | Test Current | Reverse Leakage | Max. Clamp
Voltage | Peak Pulse Current |
| VBR @ IT |
| Min | Max | IT | IR @ VRRM | VC @ IPP | IPP |
| UNI/BI | V | V | V | mA | uA | V | A |
| SM8S10A | 10 | 11.1 | 12.3 | 5 | 15 | 17 | 388 |
| SM8S11A | 11 | 12.2 | 13.5 | 5 | 10 | 18.2 | 363 |
| SM8S12A | 12 | 13.3 | 14.7 | 5 | 10 | 19.9 | 332 |
| SM8S13A | 13 | 14.4 | 15.9 | 5 | 10 | 21.5 | 307 |
| SM8S14A | 14 | 15.6 | 17.2 | 5 | 10 | 23.2 | 284 |
| SM8S15A | 15 | 16.7 | 18.5 | 5 | 10 | 24.4 | 270 |
| SM8S16A | 16 | 17.8 | 19.7 | 5 | 10 | 26 | 254 |
| SM8S17A | 17 | 18.9 | 20.9 | 5 | 10 | 27.6 | 239 |
| SM8S18A | 18 | 20 | 22.1 | 5 | 10 | 29.2 | 226 |
| SM8S20A | 20 | 22.2 | 24.5 | 5 | 10 | 32.4 | 204 |
| SM8S22A | 22 | 24.4 | 26.9 | 5 | 10 | 35.5 | 186 |
| SM8S24A | 24 | 26.7 | 29.5 | 5 | 10 | 38.9 | 170 |
| SM8S26A | 26 | 28.9 | 31.9 | 5 | 10 | 42.1 | 157 |
| SM8S28A | 28 | 31.1 | 34.4 | 5 | 10 | 45.4 | 145 |
| SM8S30A | 30 | 33.3 | 36.8 | 5 | 10 | 48.4 | 136 |
| SM8S33A | 33 | 36.7 | 40.6 | 5 | 10 | 53.3 | 124 |
| SM8S36A | 36 | 40 | 44.2 | 5 | 10 | 58.1 | 114 |
| SM8S40A | 40 | 44.4 | 49.1 | 5 | 10 | 64.5 | 102 |
| SM8S43A | 43 | 47.8 | 52.8 | 5 | 10 | 69.4 | 95.1 |
Mechanical Characteristics
Case: DO-218AB Molded plastic body, surface mount with heatsink
integrally mounted in the encapsulation
Terminals: Plated, solderable per MIL-STD-750, Method 2026
Polarity: Heatsink is anode Mounting
Position: Any Weight: 0.091 oz., 2.58 g
Rating And Characteristic Curves
Product Applications
Telecom
Computer
Industrial electronic
Consumer electronic
