200V 5a Junction Schottky Barrier Rectifier Diode SB5100 SB5150 SB5B0 SB540 Schottky Diode

Ask Lasest Price
Brand Name :	trusTec
Model Number :	SB520 THRU SB5200
Certification :	ROHS
Price :	Negotiable (EXW/FOB/CNF)
Payment Terms :	T/T
Supply Ability :	800KK PCS per month
Delivery Time :	10 work days fresh products

Add to Cart

Product Details
Company Profile

200V 5a Junction Schottky Barrier Rectifier Diode SB5100 SB5150 SB5B0 SB540 Schottky Diode

SB520 THRU SB5200

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 5 Ampere

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

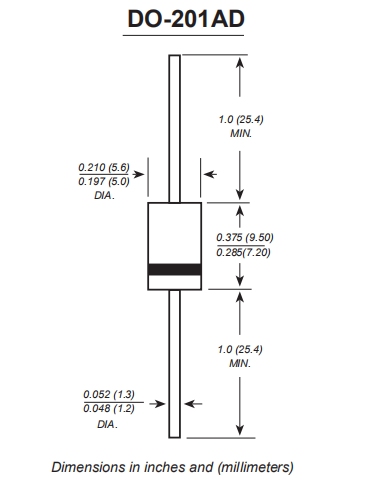

Product Drawing

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	SB 520	SB 530	SB 540	SB 550	SB 560	SB 570	SB 580	SB 590	SB 5100	SB 5150	SB 5200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	5.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150.0											Amps
Maximum instantaneous forward voltage at 5.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.5									0.2		mA
	IR	20.0					10.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	500			400								pF
Typical thermal resistance (NOTE 2)	RqJA	25.0											℃/W
Operating junction temperature range	TJ,	-65 to +150											℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

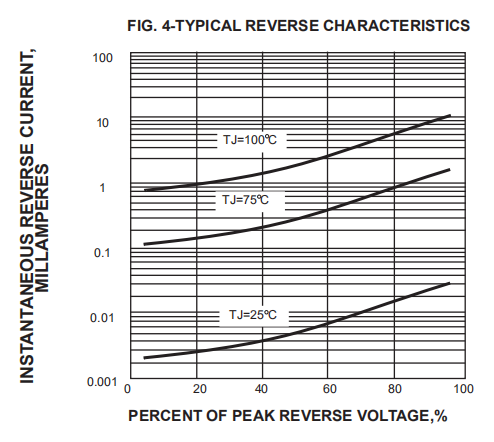

Characteristic Curves
