MBR340 MBR5200 MBR360 Schottky Diode 5A 200V DO 27 Package Axial Tape Packing

MBR340 MBR360 MBR360 Schottky Diode DO 27 Package Axial Tape Packing

MBR520 THRU MBR5200

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 5 Ampere

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

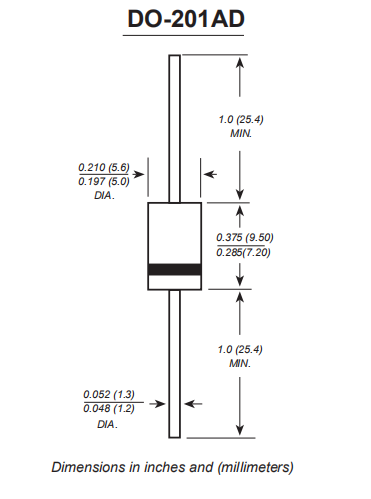

Product Drawing

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 0

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	MBR 520	MBR 530	MBR 540	MBR 550	MBR 560	MBR 570	MBR 580	MBR 590	MBR 5100	MBR 5150	MBR 5200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	5.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150.0											Amps
Maximum instantaneous forward voltage at 5.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.5									0.2		mA
	IR	20.0					10.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	500			400								pF
Typical thermal resistance (NOTE 2)	RqJA	25.0											℃/W
Operating junction temperature range	TJ,	-65 to +150											℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

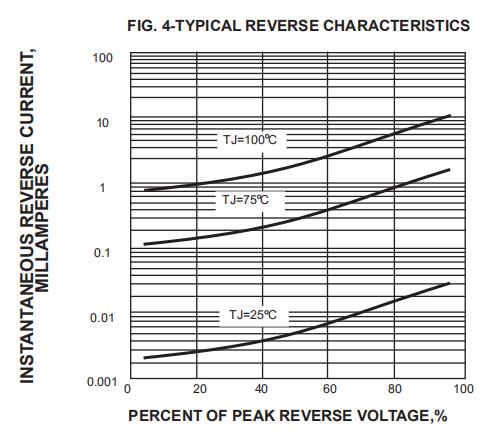

Characteristic Curves

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 1

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 2

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 3

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 4

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 5

Schottky Barrier Rectifier Diode SB540 SB560 SB5100 SB5150 SB5B0 6
