1A 20V 40v 60V 100V Schottky Barrier Rectifier Diode SB140 SB160 SB1100 SB1200

1A 20V to 200V Schottky Barrier Rectifier Diode SB140 SB160 SB1100 SB1200 SKY Diode

SB120 THRU SB1200

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts Forward Current - 1.0 Ampere

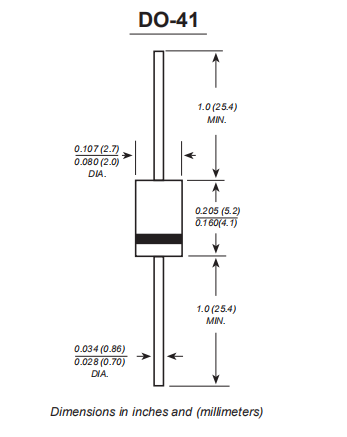

Product Dimension

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	SB 120	SB 130	SB 140	SB 150	SB 160	SB 170	SB 180	SB 190	SB 1100	SB 1150	SB 1200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	1.0											Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	40.0											Amps
Maximum instantaneous forward voltage at 1.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25 ℃ at rated DC blocking voltage TA=100 ℃	IR	0.5									0.2		mA
	IR	10.0					5.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	110			80								pF
Typical thermal resistance (NOTE 2)	RqJA	50.0											℃/W
Operating junction temperature range	TJ,	-65 to +125					-65 to +150						℃
Storage temperature range	TSTG	-65 to +150											℃

Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

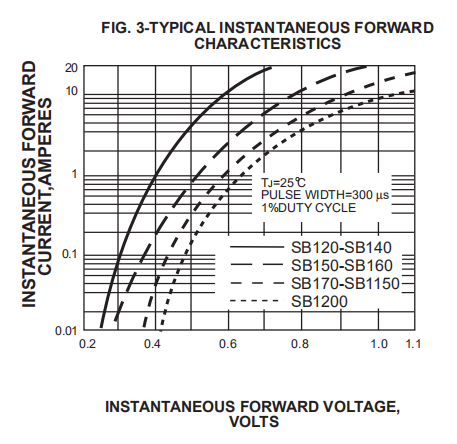

Characteristic Curves
