    MBR1045 MBR10100 MBR1060 Schottky Diode 10A 60V Fast Recovery Diode Schottky To 220

    TO-220 Low Power Loss Schottky Barrier Rectifier Diode 10A MBR1045 MBR1060 MBR10100
    MBR1020 THRU MBR10200
    SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Volts Forward Current - 10 Ampere

    Product Features


    Plastic material used carries Underwriters Laboratory Classifications 94V-0
    Metal silicon junction, majority carrier conduction
    Low power loss, high efficiency
    High current capability, low forward voltage drop
    High surge capability
    For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
    Guardring for overvoltage protection
    High temperature soldering guaranteed: 260℃/10 seconds,0.25”(6.35mm)from case
    Mechanical Data
    Case: JEDEC TO-220AC molded plastic
    Terminals: Leads, solderable per MIL-STD-750,
    Method 2026
    Polarity: As marked
    Mounting Position: Any
    Weight:0.08 ounce, 2.24 grams
    MAXIMUM RATINGS
    Ratings at 25 C ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
    SYMBOLS
    MBR
    1020

    MBR

    1030

    MBR

    1040

    MBR

    1050

    MBR

    1060

    MBR

    1070

    MBR

    1080

    MBR

    1090

    MBR

    10100

    MBR

    10150

    MBR

    10200

    UNITS
    Maximum repetitive peak reverse voltageVRRM2030405060708090100150200VOLTS
    Maximum RMS voltageVRMS142128354249566370105140VOLTS
    Maximum DC blocking voltageVDC2030405060708090100150200VOLTS
    Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)I(AV)10.0Amps
    Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)

    IFSM

    150.0

    Amps

    Maximum instantaneous forward voltage at 5.0AVF0.650.750.850.95Volts

    Maximum DC reverse current TA=25℃

    at rated DC blocking voltage TA=100℃

    IR0.21mA
    1520
    Typical junction capacitance (NOTE 1)CJ550450pF
    Typical thermal resistance (NOTE 2)RθJC2℃/W
    Operating junction temperature rangeTJ,-65 to +150
    Storage temperature rangeTSTG-65 to +150

    Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
    2.Thermal resistance from junction to case.

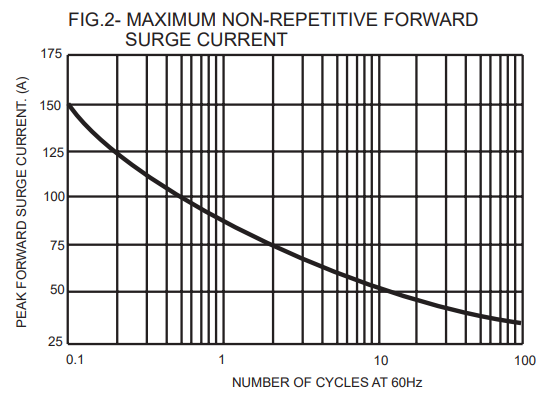

    CHARACTERISTIC CURVES
