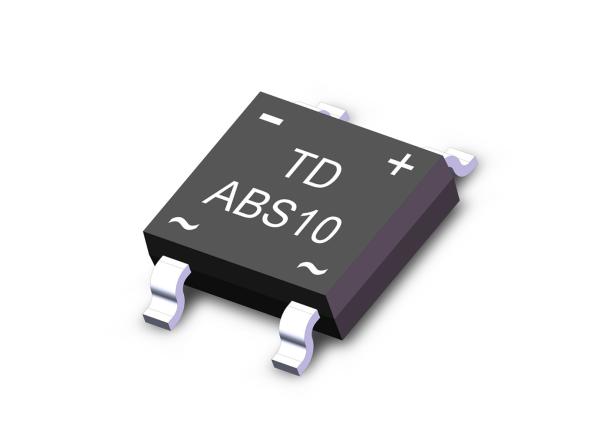

    Small 1a 2a 3a ABS10 ABS8 Bridge Rectifier Smd Package 50V 1000V

    1a 2a 3a Smd Bridge Rectifier ABS10 ABS8 Single Phase 1A 50V To 1000V
    ABS05 THRU ABS10
    GLASS PASSIVATED MINI BRIDGE RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere

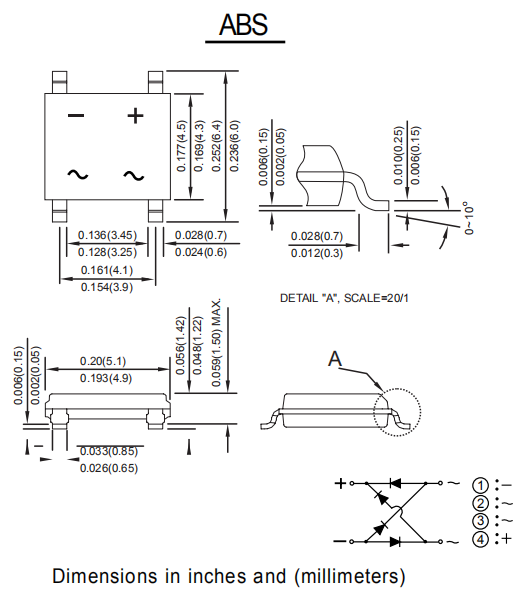

    Dimension
    FEATURES
    Ideal for printed circuit board
    Reliable low cost construction utilizing
    molded plastic technique
    High temperature soldering guaranteed:
    260 /10 seconds at 5 lbs., (2.3kg) tension
    Small size, simple installation
    High surge current capability
    Glass passivated chip junction
    This series is UL recognized component
    The plastic package carries Underwriters Laboratory
    Flammability Classification 94V-0
    MECHANICAL DATA
    Case: Molded plastic body
    Terminals: Plated leads solderable per MIL-STD-750,
    Method 2026
    Polarity: Polarity symbols marked on case
    Mounting Position: Any

    ELECTRICAL CHARACTERISTICS
    Ratings at 25 ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%.
    SYMBOLS
    ABS05
    ABS1
    ABS2
    ABS4
    ABS6
    ABS8
    ABS10
    UNITS
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    Volts
    Maximum RMS voltage
    VRMS
    3570140280420560700
    Volts
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    Volts
    Maximum average forward rectified current at TA=30
    On glass-epoxy P.C.B. (Note1)
    On aluminum substrate (Note2)
    IF(AV)
    0.8
    1.0
    Amps
    Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    30
    Amps
    Maximum instantaneous forward voltage drop per leg at 0.4A
    VF
    1.0
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=125℃
    IR

    10

    150

    uA
    Typical junction capactiance per leg(Note3)
    CJ
    25
    pF
    Typical thermal resistance per leg
    RθJA
    63℃/W
    Operating temperature range
    TJ
    -55 to +150
    Storage temperature range
    TSTG
    -55 to +150

    NOTES:
    1.On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads
    2.On aluminum substrate P.C.B. with on area of 0.8''x0.8''(20x20mm) mounted on 0.05X0.05''(1.3X1.3mm) solder pad
    3.Measured at 1.0MHz and applied reverse voltage of 4.0 volts.
    CHARACTERISTIC CURVES
