400V 3a Smd Diode S3g Diode General Purpose With Glass Passivated Chip

S3G 3 AMP 400V SMD General Purpose Standard Rectifier Diode with Glass Passivated Chip

Company introduction:

Changzhou Trustec Company is professional manufacturer and supplier of semiconductor diodes.

Main products include standard silicon rectifier diode, fast recovery rectifier diode, high efficiency rectifier diode, ultra fast recovery rectifier diode, super fast recovery rectifier diode, small signal high speed switching diode, schottky barrier rectifier diode, zener diode, TVS, DIAC, various bridge rectifier etc.

The annual capacity is up to 10,000,000,000pcs diodes and widely used in home appliances, power supply and charger, green lighting, network and communication, automotive electronics, smart meters and instruments etc areas.

S3A THRU S3M

SURFACE MOUNT GENERAL PURPOSE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere

Product Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief, ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed: 260℃/10 seconds at terminals

Mechanical Characteristics

Case: JEDEC SMC/DO-214AB molded plastic body

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.007 ounce, 0.25grams

Absolute Maximum Ratings and Electrical Parameters

Type	Io	VRRM	IFSM	VF		IR		Package Outline
Type	(A)	(V)	(A)	(V)	IF(A)	(uA)	VR(V)	Package Outline
S1A	1	50	30	1.1	1	5	50	SMA
S1B	1	100	30	1.1	1	5	100	SMA
S1D	1	200	30	1.1	1	5	200	SMA
S1G	1	400	30	1.1	1	5	400	SMA
S1J	1	600	30	1.1	1	5	600	SMA
S1K	1	800	30	1.1	1	5	800	SMA
S1M	1	1000	30	1.1	1	5	1000	SMA
S2A	2	50	50	1.1	2	5	50	SMB
S2B	2	100	50	1.1	2	5	100	SMB
S2D	2	200	50	1.1	2	5	200	SMB
S2G	2	400	50	1.1	2	5	400	SMB
S2J	2	600	50	1.1	2	5	600	SMB
S2K	2	800	50	1.1	2	5	800	SMB
S2M	2	1000	50	1.1	2	5	1000	SMB
S3A	3	50	100	1.1	3	10	50	SMC
S3B	3	100	100	1.1	3	10	100	SMC
S3D	3	200	100	1.1	3	10	200	SMC
S3G	3	400	100	1.1	3	10	400	SMC
S3J	3	600	100	1.1	3	10	600	SMC
S3K	3	800	100	1.1	3	10	800	SMC
S3M	3	1000	100	1.1	3	10	1000	SMC

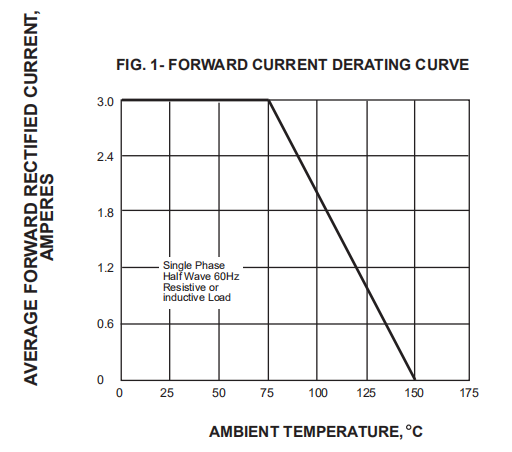

Rating And Characteristic Curves

Quality Guarantee

All diodes from trusTec are manufactured by strictly following the ISO9001 quality management system.
100% replacement is guaranteed for any defect among warranty.
