1000V 2A Rs2m Smd Fast Recovery Diode Diode SMB DO 214AA Package

Surface Mount Fast Recovery Rectifier Diode RS2M 2A 1000V SMB DO-214AA Package

RS2A THRU RS2M

SURFACE MOUNT FAST RECOVERY RECTIFIER

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes

Type	Io	VRRM	IFSM	VF		IR		Trr	Package Outline
Type	(A)	(V)	(A)	(V)	IF(A)	(uA)	VR(V)	(ns)	Package Outline
RS1A	1	50	30	1.3	1	5	50	150	SMA
RS1B	1	100	30	1.3	1	5	100	150	SMA
RS1D	1	200	30	1.3	1	5	200	150	SMA
RS1G	1	400	30	1.3	1	5	400	150	SMA
RS1J	1	600	30	1.3	1	5	600	250	SMA
RS1K	1	800	30	1.3	1	5	800	500	SMA
RS1M	1	1000	30	1.3	1	5	1000	500	SMA
RS2A	2	50	60	1.3	2	5	50	150	SMB
RS2B	2	100	60	1.3	2	5	100	150	SMB
RS2D	2	200	60	1.3	2	5	200	150	SMB
RS2G	2	400	60	1.3	2	5	400	150	SMB
RS2J	2	600	60	1.3	2	5	600	250	SMB
RS2K	2	800	60	1.3	2	5	800	500	SMB
RS2M	2	1000	60	1.3	2	5	1000	500	SMB
RS3A	3	50	90	1.3	3	5	50	150	SMC
RS3B	3	100	90	1.3	3	5	100	150	SMC
RS3D	3	200	90	1.3	3	5	200	150	SMC
RS3G	3	400	90	1.3	3	5	400	150	SMC
RS3J	3	600	90	1.3	3	5	600	250	SMC
RS3K	3	800	90	1.3	3	5	800	500	SMC
RS3M	3	1000	90	1.3	3	5	1000	500	SMC

Mechanical Characteristics

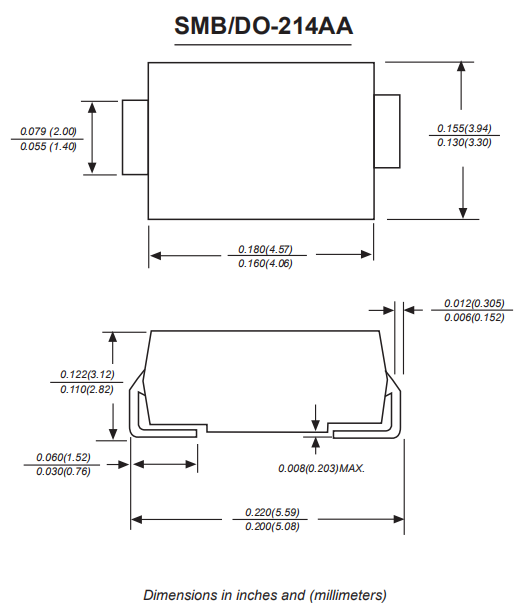

Case: JEDEC DO-214AA molded plastic body

Terminals: Solder plated , solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.005 ounce, 0.138 grams

Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

For surface mounted applications

Fast switching for high efficiency

Low reverse leakage

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds at terminals

Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	RS2A	RS2B	RS2D	RS2G	RS2J	RS2K	RS2M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	VOLTS
Maximum average forward rectified current at TL=90 C	I(AV)	2							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	50							Amps
Maximum instantaneous forward voltage at 2.0A	VF	1.3							VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃	IR	5.0 50.0							µA
Maximum reverse recovery time (NOTE 1)	trr	150				250	500		ns
Typical junction capacitance (NOTE 2)	CJ	50.0							pF
Typical thermal resistance (NOTE 23)	RθJA	20.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150							℃

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

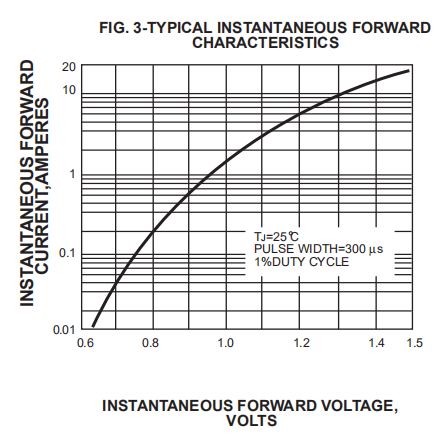

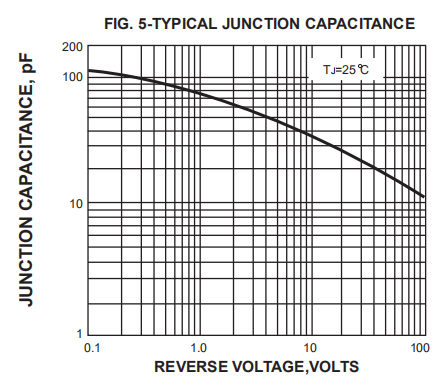

Characteristic Curves

Product Tags:

Fast Recovery Diode 2A 1000V

SMB DO 214AA Package

Rs2m do 214aa package footprint
