GPP 1A 1000V Standard Rectifier Diode 1N4001G 1N4002G 1N4003G 1N4004G 1N4005G 1N4006G 1N4007G

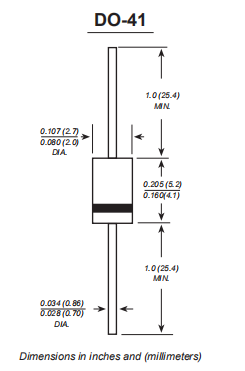

Product Drawing

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Glass passivated chip junction

MECHANICAL DATA

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

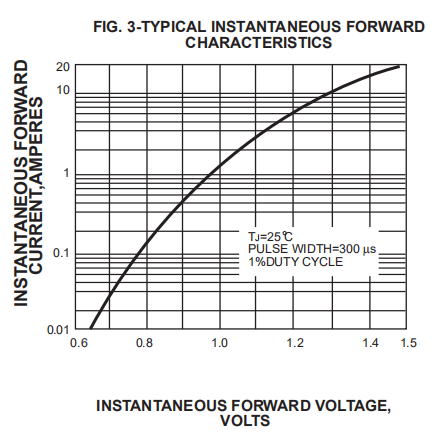

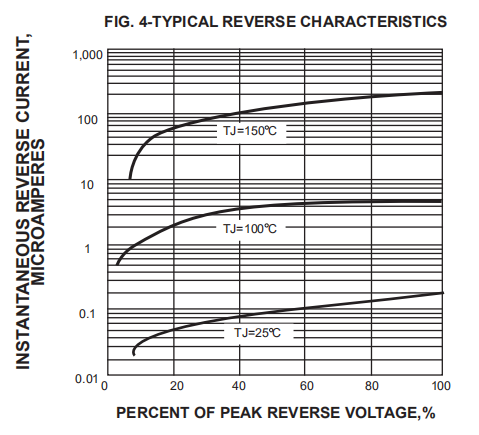

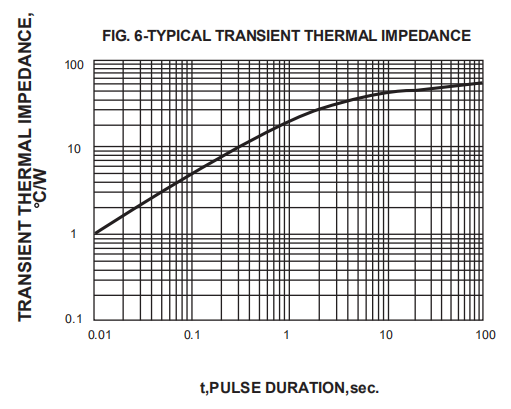

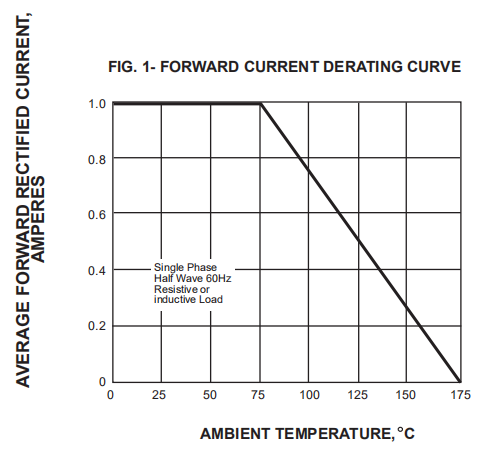

Characteristic Curves
