1.5A 1000V General Purpose Rectifier Diode 1N5393 1N5395 1N5399 DO 15

1.5A 1000V General Purpose Rectifier Diode 1N5393 1N5395 1N5399 DO-15 Plastic Case

1N5391 THRU 1N5399

GENERAL PURPOSE SILICON RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 1.5 Ampere

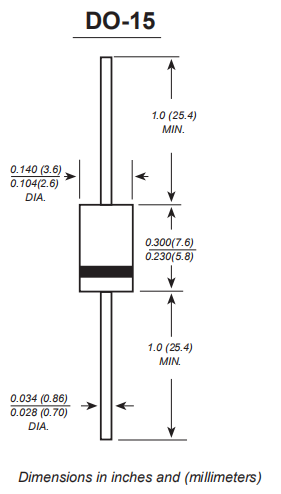

Product Drawing

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free

molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-15 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.014 ounce, 0.40 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	1N 5391	1N 5392	1N 5393	1N 5394	1N 5395	1N 5396	1N 5397	1N 5398	1N 5399	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	500	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	350	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	500	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	3.0									Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150									Amps
Maximum instantaneous forward voltage at 3.0A	VF	1.0									VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃	IR	5.0 100									µA
Typical junction capacitance (NOTE 1)	CJ	30.0									pF
Typical thermal resistance (NOTE 2)	RθJA	20.0									℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +175									℃

Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

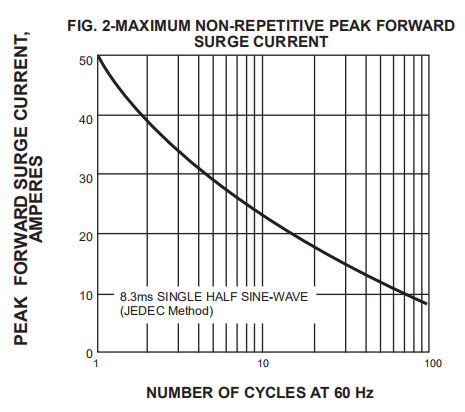

Characteristic Curves
