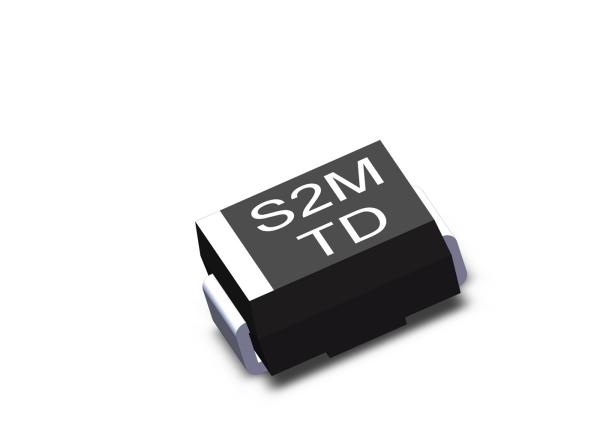

2a 1000V S2m Smd Diode

Ask Lasest Price
Brand Name :	trusTec
Model Number :	S2M
Certification :	ROHS
Price :	Negotiable (EXW/FOB/CNF)
Payment Terms :	T/T
Supply Ability :	800KK PCS per month
Delivery Time :	10 work days fresh products

Add to Cart

Product Details
Company Profile

2a 1000V S2m Smd Diode

SMD General Purpose Rectifier Diode 2 AMP 1000V S2m Smd Diode SMC SMA SMAE SMAF Package

Product Features

For surface mounted applications

Ideal for automated placement

Low forward voltage drop

High surge current capability

RoHS Compliant

Mechanical Characteristics

Case: SMB molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Solder plated, solderable per MIL- STD-202,Method 208

Polarity: Color band denotes cathode end

Absolute Maximum Ratings and Electrical Parameters

Type	Io	VRRM	IFSM	VF		IR		Package
Type	(A)	(V)	(A)	(V)	IF(A)	(uA)	VR(V)	Outline
S2AA	2	50	50	1.1	2	5	50	SMA
S2BA	2	100	50	1.1	2	5	100	SMA
S2DA	2	200	50	1.1	2	5	200	SMA
S2GA	2	400	50	1.1	2	5	400	SMA
S2JA	2	600	50	1.1	2	5	600	SMA
S2KA	2	800	50	1.1	2	5	800	SMA
S2MA	2	1000	50	1.1	2	5	1000	SMA
S2AAF	2	50	50	1.1	2	5	50	SMAF
S2BAF	2	100	50	1.1	2	5	100	SMAF
S2DAF	2	200	50	1.1	2	5	200	SMAF
S2GAF	2	400	50	1.1	2	5	400	SMAF
S2JAF	2	600	50	1.1	2	5	600	SMAF
S2KAF	2	800	50	1.1	2	5	800	SMAF
S2MAF	2	1000	50	1.1	2	5	1000	SMAF
S2A	2	50	60	1.1	2	5	50	SMB
S2B	2	100	60	1.1	2	5	100	SMB
S2D	2	200	60	1.1	2	5	200	SMB
S2G	2	400	60	1.1	2	5	400	SMB
S2J	2	600	60	1.1	2	5	600	SMB
S2K	2	800	60	1.1	2	5	800	SMB
S2M	2	1000	60	1.1	2	5	1000	SMB
S2AF	2	50	60	1.1	2	5	50	SMBF
S2BF	2	100	60	1.1	2	5	100	SMBF
S2DF	2	200	60	1.1	2	5	200	SMBF
S2GF	2	400	60	1.1	2	5	400	SMBF
S2JF	2	600	60	1.1	2	5	600	SMBF
S2KF	2	800	60	1.1	2	5	800	SMBF
S2MF	2	1000	60	1.1	2	5	1000	SMBF

Rating And Characteristic Curves
