1A 2A 3A 6A Axial Fast Recovery Rectifier Diode BA159 1N4937 FR107 FR157 FR257 FR307

Ask Lasest Price
Brand Name :	trusTec
Model Number :	BA159
Certification :	ROHS
Price :	Negotiable (EXW/FOB/CNF)
Payment Terms :	T/T
Supply Ability :	800KK PCS per month
Delivery Time :	10 work days fresh products

Add to Cart

Product Details
Company Profile

1A 2A 3A 6A Axial Fast Recovery Rectifier Diode BA159 1N4937 FR107 FR157 FR257 FR307

1A 2A 3A 6A Axial Fast Recovery Rectifier Diode BA159 1N4937 FR107 FR157 FR207 FR257 FR307 FR607

Product Drawing

Technical Parameters

Type	Current	Package
1F1 THRU 1F7	1A	R-1
FR101S THRU FR107S	1A	A-405
BA157S THRU BA159S	1A	A-405
1N4933 THRU 1N4937	1A	DO-41
BA157 THRU BA159	1A	DO-41
FR101 THRU RL107	1A	DO-41
FR151 THRU FR157	1.5A	DO-15
FR201 THRU FR207	2A	DO-15
BY296 THRU BY299	2A	DO-15
FR251 THRU FR257	2.5A	R-3
FR301 THRU FR307	3A	DO-27
BY396 THRU BY399	3A	DO-27
FR601 THRU FR607	6A	R-6

Product Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

Mechanical Data

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

MAXIMUM RATINGS

	SYMBOLS	BA157	BA158	BA159	UNITS
Maximum repetitive peak reverse voltage	VRRM	400	600	1000	VOLTS
Maximum RMS voltage	VRMS	280	420	700	VOLTS
Maximum DC blocking voltage	VDC	400	600	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	1.0			Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	30.0			Amps
Maximum instantaneous forward voltage at 1.0A	VF	1.3			Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	5.0 50.0			µA
Maximum reverse recovery time (NOTE 1)	trr	150	250	500	ns
Typical junction capacitance (NOTE 2)	CJ	15.0			pF
Typical thermal resistance (NOTE 3)	RθJA	50.0			℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150			℃

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

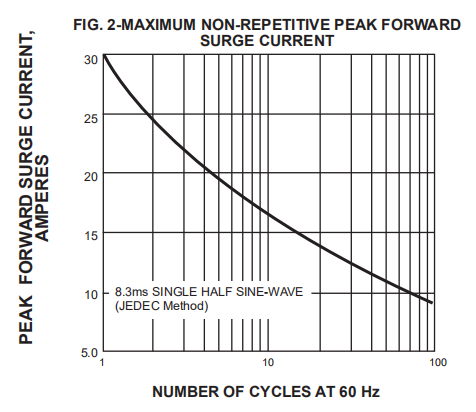

RATINGS AND CHARACTERISTIC CURVES
