SF21 THRU SF28

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	SF21	SF22	SF23	SF24	SF25	SF26	SF28	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	150	200	300	400	600	VOLTS
Maximum RMS voltage	VRMS	35	70	105	140	210	280	420	VOLTS
Maximum DC blocking voltage	VDC	50	100	150	200	300	400	600	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	2.0							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	50							Amps
Maximum instantaneous forward voltage at 6.0A	VF	0.95				1.25		1.7	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10	IR	5.0 50.0							µA
Maximum reverse recovery time (NOTE 1)	trr	35							ns
Typical junction capacitance (NOTE 2)	CJ	60.0				30.0			pF
Typical thermal resistance (NOTE 3)	RθJA	50.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-55 to +150							℃

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Super fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guarantteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

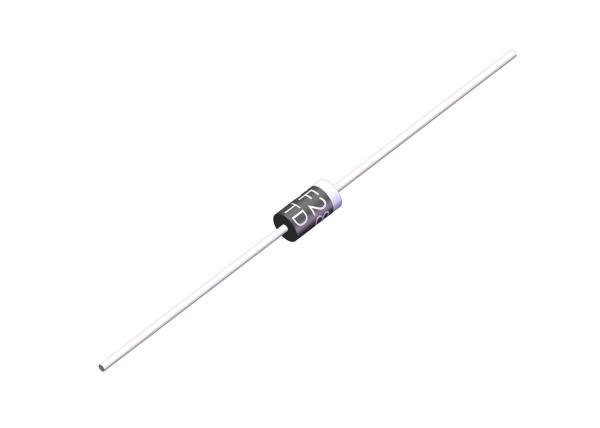

MECHANICAL DATA

Case: JEDEC DO-15 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.014 ounce, 0.40 grams

DIMENSION

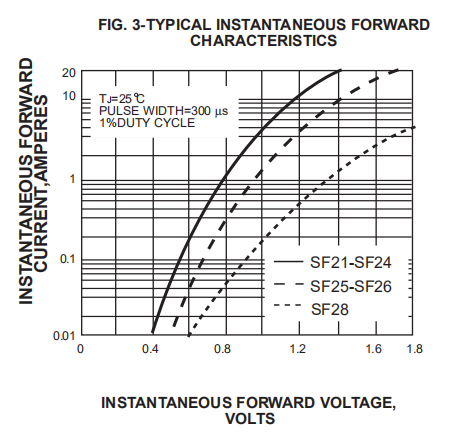

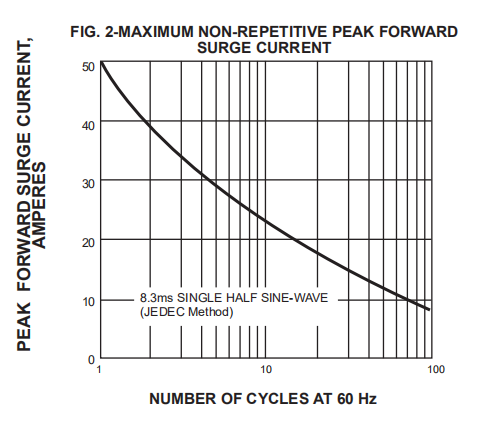

RATINGS AND CHARACTERISTIC CURVES
