    High Efficiency Plastic Silicon Rectifier Diode Axial DO-201AD 3A 1000V HER308 1000pcs Box Packing
    HER301 THRU HER308
    HIGH EFFICIENCY RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere
    MAXIMUM RATINGS
    Ratings at 25 C ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%
    SYMBOLS
    HER
    301
    HER
    302
    HER
    303
    HER
    304
    HER
    305
    HER
    306
    HER
    307
    HER
    308
    UNITS
    Maximum repetitive peak reverse voltage
    VRRM
    501002003004006008001000
    VOLTS
    Maximum RMS voltage
    VRMS
    3570140210280420560700
    VOLTS
    Maximum DC blocking voltage
    VDC
    501002003004006008001000
    VOLTS
    Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
    I(AV)
    3.0
    Amps
    Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    150.0
    Amps
    Maximum instantaneous forward voltage at 6.0A

    VF

    1.01.31.7
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=100℃10

    5.0

    150

    µA

    Maximum reverse recovery time (NOTE 1)
    trr
    5070ns
    Typical junction capacitance (NOTE 2)
    CJ
    70.050.0pF
    Typical thermal resistance (NOTE 3)
    RθJA
    20.0℃/W
    Operating junction and storage temperature range
    TJ,TSTG
    -65 to +150

    Note:
    1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
    2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
    3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
    FEATURES
    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    High switching for high efficiency
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
    MECHANICAL DATA
    Case: JEDEC DO-201AD molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.04 ounce, 1.10 grams

    Product Outline

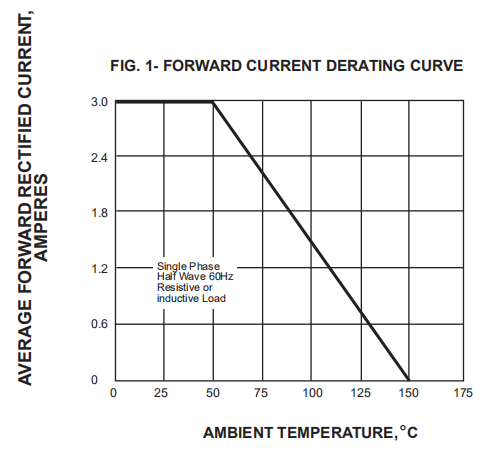

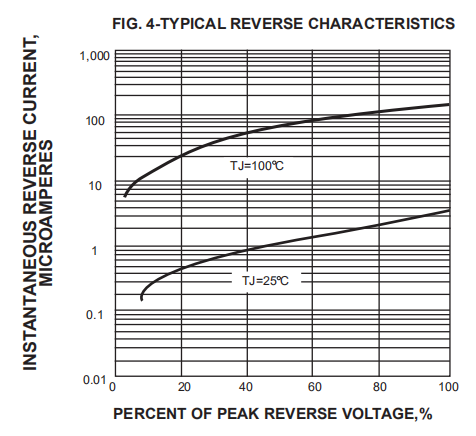

    Characteristic Curves
