2.5a High Efficiency Rectifier Diode 1000V Trr 70ns HER258 R 3

High Efficiency Rectifier Diode HER258 R-3 2.5 Ampere 1000 Volts 70ns Reverse Recovery Time

HER251 THRU HER258

HIGH EFFICIENCY RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.5 Ampere

Product Size

MAXIMUM RATINGS

	SYMBOLS	HER 251	HER 252	HER 253	HER 254	HER 255	HER 256	HER 257	HER 258	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	2.5								Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	80.0								Amps
Maximum instantaneous forward voltage at 6.0A	VF	1.0			1.3		1.7			Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10		5.0 100								µA
Maximum reverse recovery time (NOTE 1)	trr	50					70			ns
Typical junction capacitance (NOTE 2)	CJ	30.0					20.0			pF
Typical thermal resistance (NOTE 3)	RθJA	50.0								℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150								℃

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

High speed switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC R-3 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.021 ounce, 0.58 grams

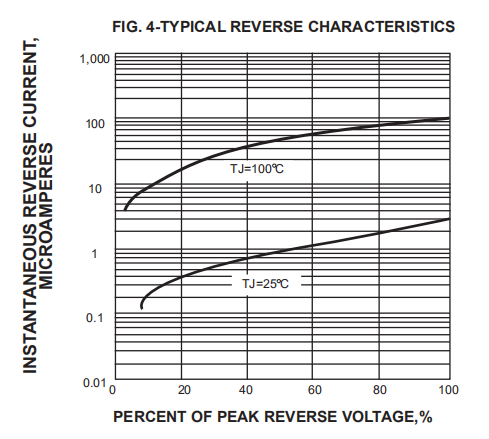

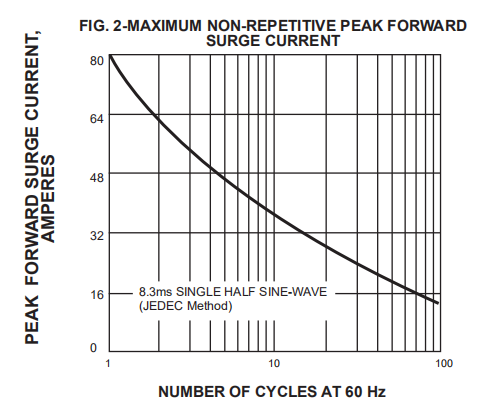

Characteristic Curves
