1N4729A 1N4730A 1N4731A 1N4732A 1N4733A 1n4728a Zener Diode 1W 3.3V

1W Glass Package Silicon Zener Diode 1N4728A 1N4729A 1N4730A 1N4731A 1N4732A 1N4733A

1N4728A THRU 1N4764A

GLASS ZENER DIODES

Zener Voltage: 3.3-100 Volts

Peak Pulse Power: 1000 mW

FEATURE

Low zener impedance

Low reverse leakage

Power dissipation of 1000mW

High stability and high reliability

MECHANICAL DATA

Case: DO-41 Glass Case

Polarity: Color band denotes cathode end

Mounting Position: Any

Maximum Ratings & Thermal Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified.

Parameters	Symbol	Value	Unit
Power Dissipation	Pd	1000 1)	mW
Operating junction temperature	Tj	200	℃
Storage temperature range	Ts	-55-+200	℃

1) Valid provided that leads are kept at ambient temperature at a distance of 8mm from case

ELECTRICAL CHARACTERISTICS

at TA=25℃ unless otherwise noted

TYPE	Zener Voltage		Reverse Carrent		Dynamic Resistance
	Vz(V)	Test Condition	Ir(uA)	Test Condition	rd(Ω)	Test Condition
	Nom.	Iz(mA)	Max.	Vr(V)	Max.	Iz(mA)
1N4728A	3.3	76.0	100	1.0	10	76.0
1N4729A	3.6	69.0	100	1.0	10	69.0
1N4730A	3.9	64.0	50	1.0	9	64.0
1N4731A	4.3	58.0	10	1.0	9	58.0
1N4732A	4.7	53.0	10	1.0	8	53.0
1N4733A	5.1	49.0	10	1.0	7	49.0
1N4734A	5.6	45.0	10	2.0	5	45.0
1N4735A	6.2	41.0	10	3.0	2	41.0
1N4736A	6.8	37.0	10	4.0	3.5	37.0
1N4737A	7.5	34.0	10	5.0	4	34.0
1N4738A	8.2	31.0	10	6.0	4.5	31.0
1N4739A	9.1	28.0	10	7.0	5	28.0
1N4740A	10	25.0	10	7.6	7	25.0
1N4741A	11	23.0	5	8.4	8	23.0
1N4742A	12	21.0	5	9.1	9	21.0
1N4743A	13	19.0	5	9.9	10	19.0
1N4744A	15	17.0	5	11.4	14	17.0
1N4745A	16	15.5	5	12.2	16	15.5
1N4746A	18	14.0	5	13.7	20	14.0
1N4747A	20	12.5	5	15.2	22	12.5
1N4748A	22	11.5	5	16.7	23	11.5
1N4749A	24	10.5	5	18.2	25	10.5
1N4750A	27	9.5	5	20.6	35	9.5
1N4751A	30	8.5	5	22.8	40	8.5
1N4752A	33	7.5	5	25.1	45	7.5
1N4753A	36	7.0	5	27.4	50	7.0
1N4754A	39	6.5	5	29.7	60	6.5
1N4755A	43	6.0	5	32.7	70	6.0
1N4756A	47	5.5	5	35.8	80	5.5
1N4757A	51	5.0	5	38.8	95	5.0
1N4758A	56	4.5	5	42.6	110	4.5
1N4759A	62	4.0	5	47.1	125	4.0
1N4760A	68	3.7	5	51.7	150	3.7
1N4761A	75	3.3	5	56.0	175	3.3
1N4762A	82	3.0	5	62.2	200	3.0
1N4763A	91	2.8	5	69.2	250	2.8
1N4764A	100	2.5	5	76.0	350	2.5

Notes:

1) Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature.

2) Measured under thermal equilibrium and DC test conditions.

3) The rating listed in the electrical characteristics table is maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equiv-alent sine wave pulse of 1/120 second duration superimposed on the test current, IZT ,per JEDEC registration; however, actual device capability is as described in Fiure 5 of the General Data-DO-41 Glass.

4) Tested with pulses tp = 20 ms.

5) VF(Max)=1.20V@ IF=200mA

*Measure under thermal equilibrium and DC current test conditions(TA=25℃)

Tolerance on 1N47..A Vz value: ±5%.

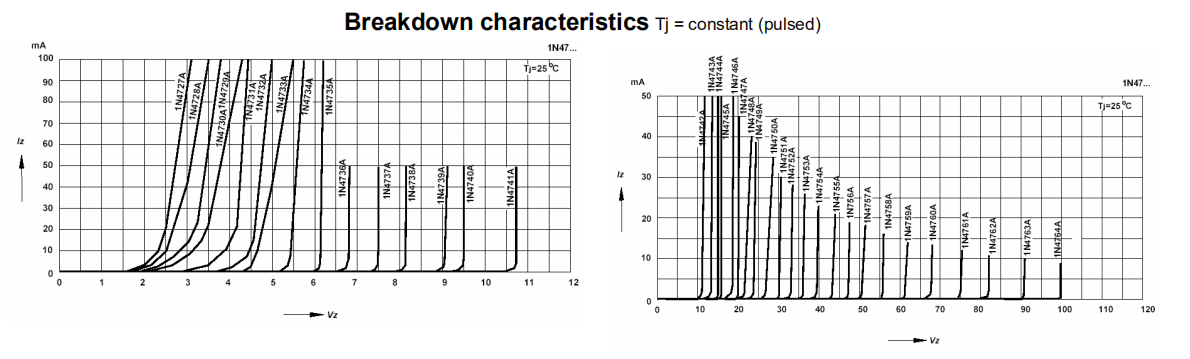

RATINGS AND CHARACTERISTIC CURVES
