    600W 200V Bidirectional Transient Voltage Suppressors For Esd Protection P6KE200CA

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : P6KE200CA
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    600W 200V Bidirectional Transient Voltage Suppressors For Esd Protection P6KE200CA

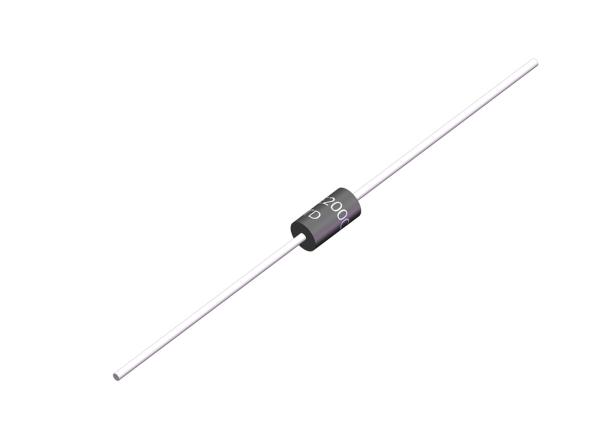

    600W Axial Bidirectional TVS Protection Diode P6KE200CA Transient Voltage Suppressor
    Product Details
    P6KE6.8 THRU P6KE440A
    TRANSIENT VOLTAGE SUPPRESSOR
    Breakdown Voltage:6.8-440 Volts
    600w peak pulse power capability
    Excellent clamping capability
    Low incremental surge resistance
    Fast response time:typically less than 1.0ps from 0v to
    VBR for unidirectional and 5.0ns ror bidirectional types.
    High temperature soldering guaranteed: 265 ℃/10S/9.5mm lead length at 5 lbs tension
    Case: JEDEC DO-15 molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD 750, method 2026
    Polarity: Color band denotes cathode except for bidirectional types
    Mounting Position: Any
    Weight: 0.014 ounce,0.40 grams
    For bidirectional use suffix C or CA for types P6KE6.8 thru P6KE440 (e.g. P6KE6.8CA,P6KE440CA).
    Electrical characteristics apply in both directions.
    600W 200V Bidirectional Transient Voltage Suppressors For Esd Protection P6KE200CA
    Product Datasheet

    TypeReverse Stand-off VoltageBreakdown VoltageTest CurrentReverse LeakageMax. Clamp
    Voltage
    Peak Pulse Current
    VBR @ IT
    MinMaxITIR @ VRRMVC @ IPPIPP
    UNI/BIVVVmAuAVA
    P6KE100A/CA85.595105151374.4
    P6KE110A/CA94105116151523.9
    P6KE120A/CA102114126151653.6
    P6KE130A/CA111124137151793.4
    P6KE150A/CA128143158152072.9
    P6KE160A/CA136152168152192.7
    P6KE170A/CA145162179152342.6
    P6KE180A/CA154171189152462.4
    P6KE200A/CA171190210152742.2
    P6KE220A/CA185209231153281.8
    P6KE250A/CA214237263153441.7
    P6KE300A/CA256285315154141.4
    P6KE350A/CA300332368154821.2
    P6KE400A/CA342380420155481.1
    P6KE440A/CA376418462156021.0
