Bidirectional Axial TVS Diodes 250V 1500W Surge Suppressor Diode 1.5KE250CA DO 27

250V Bidirectional Axial TVS Diode 1.5KE250CA 1500W DO-27 Package GPP Silicon Chip

Product Details

1.5KE6.8 THRU 1.5KE440A

TRANSIENT VOLTAGE SUPPRESSOR

Breakdown Voltage:6.8-440 Volts

FEATURE

1500w peak pulse power capability

Excellent clamping capability

Low incremental surge resistance

Fast response time:typically less than 1.0ps from 0v to VBR for unidirectional and 5.0ns for bidirectional types.

High temperature soldering guaranteed: 265 ℃/10S/9.5mm lead length at 5 lbs tension

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD 750method 2026

Polarity: Color band denotes cathode except for bidirectional types

Mounting Position: Any

Weight: 0.04 ounce,1.10 grams

DEVICES FOR BIDIRECTIONAL APPLICATIONS

For bidirectional use suffix C or CA for types 1.5KE4.8 thru 1.5KE440 (e.g. 1.5KE6.8CA, 1.5KE440CA)

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

	SYMBOLS	VALUE	UNITS
Peak power dissipation (Note 1)	PPPM	Minimum 1500	Watts
Peak polse reverse current (Note 1, Fig.1)	IPPM	See Table	Amps
Steady state power dissapation (Note 2)	PM(AV)	5.0	Watts
Peak forward surge current (Note 3)	IFSM	200	Amps
Maximum instantaneous forward voltage at 100A for unidirectional only (Note 4)	VF	3.5/5.0	Volts
Operating junction and storage temperature range	TSTG,TJ	-55 to + 175	℃

Notes:

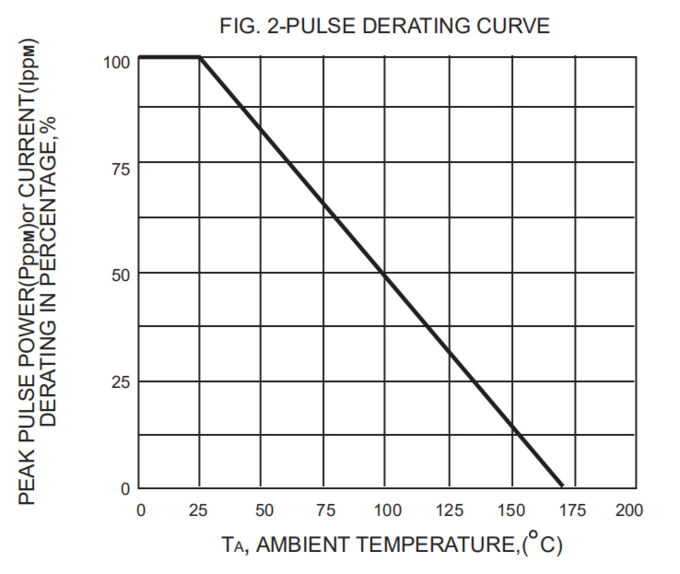

1.10/1000ms waveform non-repetitive current pulse,per Fig.3 and derated above Ta=25 C per Fig.2

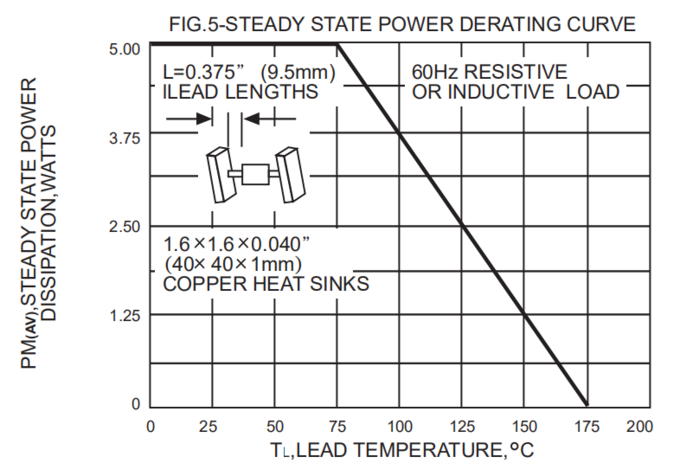

2.TL=75 C,lead lengths 9.5mm,Mounted on copper pad atea of (20x20mm)Fig.5

3.Measured on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum.

4.VF=3.5V max.for devices of V(BR)<200V,and VF=5.0V max.for devices of V(BR)>200V

ELECTRICAL CHARACTERISTICS

Device Type	Stand-off Voltage	Breakdown Voltage		Test Current	Reverse Leakage	Max. Clamp Voltage	Peak Pulse Current
	Stand-off Voltage	VBR @ IT		Test Current	Reverse Leakage	Max. Clamp Voltage	Peak Pulse Current
	VWM	Min	Max	IT	IR @ VWM	VC @ IPPM	IPPM
UNI/BI	V	V	V	mA	uA	V	A
1.5KE6.8A/CA	5.80	6.45	7.14	10.0	1000.0	10.5	143
1.5KE7.5A/CA	6.40	7.13	7.88	10.0	500.0	11.3	133
1.5KE8.2A/CA	7.02	7.79	8.61	10.0	200.0	12.1	124
1.5KE9.1A/CA	7.78	8.65	9.55	1.0	50.0	13.4	112
1.5KE10A/CA	8.55	9.50	10.5	1.0	10.0	14.5	103
1.5KE11A/CA	9.40	10.5	11.6	1.0	5.0	15.6	96.2
1.5KE12A/CA	10.2	11.4	12.6	1.0	5.0	16.7	89.8
1.5KE13A/CA	11.1	12.4	13.7	1.0	5.0	18.2	82.4
1.5KE15A/CA	12.8	14.3	15.8	1.0	5.0	21.2	70.8
1.5KE16A/CA	13.6	15.2	16.8	1.0	5.0	22.5	66.7
1.5KE18A/CA	15.3	17.1	18.9	1.0	5.0	25.5	59.5
1.5KE20A/CA	17.1	19.0	21.0	1.0	5.0	27.7	54.2
1.5KE22A/CA	18.8	20.9	23.1	1.0	5.0	30.6	49.0
1.5KE24A/CA	20.5	22.8	25.2	1.0	5.0	33.2	45.2
1.5KE27A/CA	23.1	25.7	28.4	1.0	5.0	37.5	40.0
1.5KE30A/CA	25.6	28.5	31.5	1.0	5.0	41.4	36.2
1.5KE33A/CA	28.2	31.4	34.7	1.0	5.0	45.7	32.8
1.5KE36A/CA	30.8	34.2	37.8	1.0	5.0	49.9	30.1
1.5KE39A/CA	33.3	37.1	41.0	1.0	5.0	53.9	27.8
1.5KE43A/CA	36.8	40.9	45.2	1.0	5.0	59.3	25.3
1.5KE47A/CA	40.2	44.7	49.4	1.0	5.0	64.8	23.1
1.5KE51A/CA	43.6	48.5	53.6	1.0	5.0	70.1	21.4
1.5KE56A/CA	47.8	53.2	58.8	1.0	5.0	77.0	19.5
1.5KE62A/CA	53.0	58.9	65.1	1.0	5.0	85.0	17.6
1.5KE68A/CA	58.1	64.6	71.4	1.0	5.0	92.0	16.3
1.5KE75A/CA	64.1	71.3	78.8	1.0	5.0	103	14.6
1.5KE82A/CA	70.1	77.9	86.1	1.0	5.0	113	13.3
1.5KE91A/CA	77.8	86.5	95.5	1.0	5.0	125	12.0
1.5KE100A/CA	85.5	95.0	105	1.0	5.0	137	10.9
1.5KE110A/CA	94.0	105	116	1.0	5.0	152	9.9
1.5KE120A/CA	102	114	126	1.0	5.0	165	9.1
1.5KE130A/CA	111	124	137	1.0	5.0	179	8.4
1.5KE150A/CA	128	143	158	1.0	5.0	207	7.2
1.5KE160A/CA	136	152	168	1.0	5.0	219	6.8
1.5KE170A/CA	145	162	179	1.0	5.0	234	6.4
1.5KE180A/CA	154	171	189	1.0	5.0	246	6.1
1.5KE200A/CA	171	190	210	1.0	5.0	274	5.5
1.5KE220A/CA	185	209	231	1.0	5.0	328	4.6
1.5KE250A/CA	214	237	263	1.0	5.0	344	4.4
1.5KE300A/CA	256	285	315	1.0	5.0	414	3.6
1.5KE350A/CA	300	332	368	1.0	5.0	482	3.1
1.5KE400A/CA	342	380	420	1.0	5.0	548	2.7
1.5KE440A/CA	376	418	462	1.0	5.0	602	2.5

RATINGS AND CHARACTERISTIC CURVES

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 0

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 1

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 2

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 3

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 4

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 5

1500W 47V GPP Through Hole Bidirectional TVS Diode 1.5KE47CA with 10KPCS Ammo Packing 6
