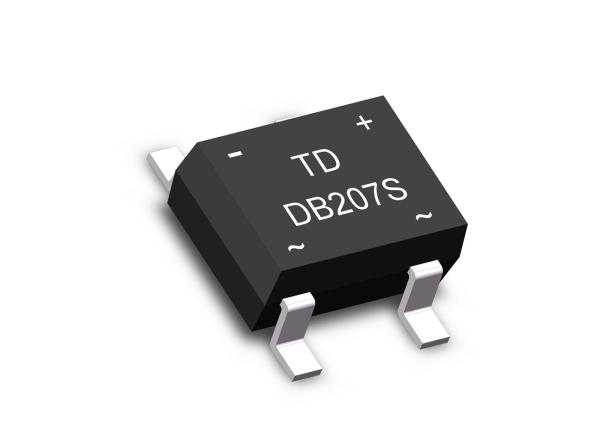

    400v 600v 1000v 2 Amp Bridge Rectifier Db207s 50 To 1000 Volts

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : DB207S
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    400v 600v 1000v 2 Amp Bridge Rectifier Db207s 50 To 1000 Volts

    DB207S SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER DIODE VOLTAGE 50 to 1000 Volts CURRENT 2.0 Amperes
    DB201S THRU DB207S
    GLASS PASSIVATED BRIDGE RECTIFIERS
    Reverse Voltage -50 to 1000Volts Forward Current -2.0 Ampere
    FEATURES
    Ideal for printed circuit board
    Reliable low cost construction utilizing
    molded plastic technique
    High temperature soldering guaranteed:
    250 /10 seconds / 0.375''(9.5mm)
    led length at 5 lbs., (2.3kg)tension
    Small size, simple installation
    Leads solderable per MIL-STD-202, Method 208
    High surge current capability
    Glass passivated chip junction
    This series is UL recognized component
    MECHANICAL DATA
    Case: Molded plastic body
    Terminals: Plated leads solderable per MIL-STD-750,
    Method 2026
    Polarity: Polarity symbols marked on case
    Mounting Position: Any
    Weight:0.04 ounce, 1.0 grams

    ELECTRICAL CHARACTERISTICS
    Ratings at 25 ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%.
    SYMBOLS
    DB201S
    DB202S
    DB203S
    DB204S
    DB205S
    DB206S
    DB207S
    UNITS
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    Volts
    Maximum RMS voltage
    VRMS
    3570140280420560700
    Volts
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    Volts
    Maximum average forward output rectified current at TA=40 ℃
    IF(AV)
    2
    Amps
    Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    60
    Amps
    Maximum instantaneous forward voltage drop per leg at 1.0A
    VF
    1.1
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=125℃
    IR

    5

    500

    uA
    Operating temperature range
    TJ
    -55 to +150
    Storage temperature range
    TSTG
    -55 to +150

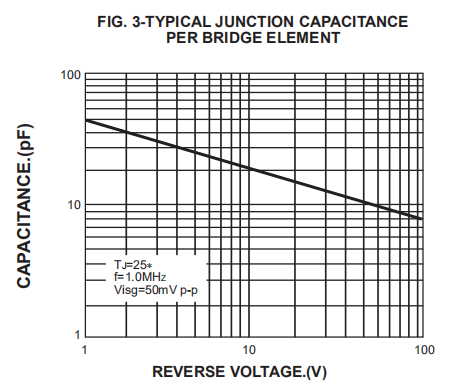

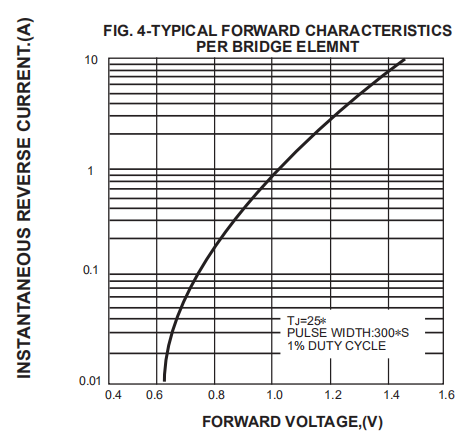

    CHARACTERISTIC CURVES
