    2W10 2W06 2W04 Single Phase Full Wave Bridge Rectifier 2A 1000V

    Round Silicon Bridge Rectifier Diode Full Wave Single Phase 2A 1000V 2W10 2W06 2W04
    2W005 THRU 2W10
    SILICON BRIDGE RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere
    FEATURES
    The plastic package carries Underwriters Laboratory
    Flammability Classification 94V-0
    Ideal for printed circuit boards
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed:
    260 C/10 seconds,5 lbs. (2.3kg) tension
    This series is UL recognized component
    MECHANICAL DATA
    Case: Molded plastic body
    Terminals: Plated leads solderable per MIL-STD-750,
    Method 2026
    Polarity: Polarity symbols marked on case
    Mounting Position: Any
    Weight:1.07 grams

    ELECTRICAL CHARACTERISTICS
    Ratings at 25 ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load, for capacitive load derate current by 20%.
    SYMBOLS
    2W005
    2W01
    2W02
    2W04
    2W06
    2W08
    2W010
    UNITS
    Maximum repetitive peak reverse voltage
    VRRM
    501002004006008001000
    Volts
    Maximum RMS voltage
    VRMS
    3570140280420560700
    Volts
    Maximum DC blocking voltage
    VDC
    501002004006008001000
    Volts
    Maximum average forward output rectified current
    0.06”(1.5mm) lead lenth at TA=40 C (Note 2)
    IF(AV)

    2

    Amps
    Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
    IFSM
    50
    Amps
    Maximum instantaneous forward voltage drop per leg at 1.0A
    VF
    1.0
    Volts
    Maximum DC reverse current TA=25℃
    at rated DC blocking voltage TA=100℃
    IR

    10

    1000

    uA
    Typical junction capactiance per leg(Note1)
    CJ
    30
    pF
    Typical thermal resistance per leg(Note 2)
    RθJA
    36℃/W
    Operating temperature range
    TJ
    -55 to +125
    Storage temperature range
    TSTG
    -55 to +150

    NOTES:
    1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
    2.Unit mounted on P.C. board with 0.51” x 0.51”(13x13mm) copper pads.

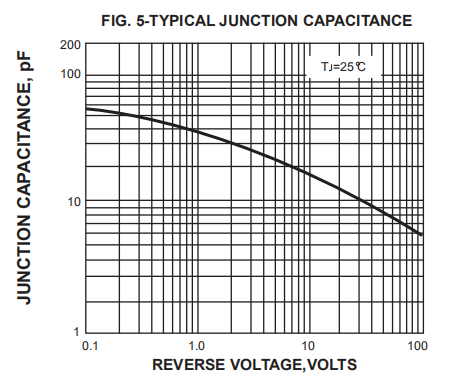

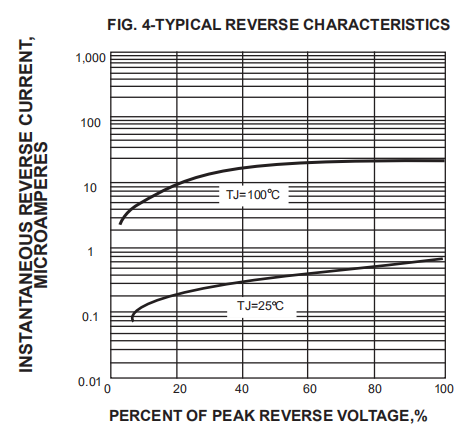

    CHARACTERISTIC CURVES
