RS207 RS 205 RS606 RS605 RS808 RS807 RS406 Bridge Rectifier 1000V 4A Flat

Ask Lasest Price
Brand Name :	trusTec
Model Number :	RS406
Certification :	ROHS
Price :	Negotiable (EXW/FOB/CNF)
Payment Terms :	T/T
Supply Ability :	800KK PCS per month
Delivery Time :	10 work days fresh products

Add to Cart

Product Details
Company Profile

RS207 RS 205 RS606 RS605 RS808 RS807 RS406 Bridge Rectifier 1000V 4A Flat

Flat Silicon Bridge Rectifier Diode RS207 RS205 RS406 RS606 RS605 RS808 RS807 with Round Leg

RS401 THRU RS407

SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere

PRODUCT DATASHEET

Type	IAV	VRRM	VF	IR	IFSM	Package
Type	A	V	V	uA	A	Package
RS201	2	50	1.1	10	50	RS-2
RS202	2	100	1.1	10	50	RS-2
RS203	2	200	1.1	10	50	RS-2
RS204	2	400	1.1	10	50	RS-2
RS205	2	600	1.1	10	50	RS-2
RS206	2	800	1.1	10	50	RS-2
RS207	2	1000	1.1	10	50	RS-2
RS301	3	50	1.1	10	75	RS-2
RS302	3	100	1.1	10	75	RS-2
RS303	3	200	1.1	10	75	RS-2
RS304	3	400	1.1	10	75	RS-2
RS305	3	600	1.1	10	75	RS-2
RS306	3	800	1.1	10	75	RS-2
RS307	3	1000	1.1	10	75	RS-2
RS401	4	50	1.1	10	150	RS-4
RS402	4	100	1.1	10	150	RS-4
RS403	4	200	1.1	10	150	RS-4
RS404	4	400	1.1	10	150	RS-4
RS405	4	600	1.1	10	150	RS-4
RS406	4	800	1.1	10	150	RS-4
RS407	4	1000	1.1	10	150	RS-4

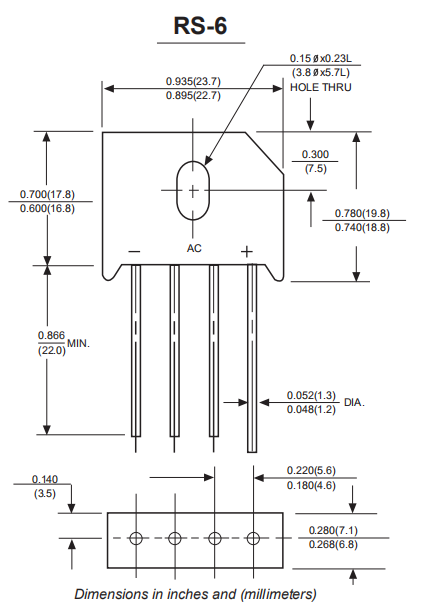

RS601	6	50	1.1	10	150	RS-6
RS602	6	100	1.1	10	150	RS-6
RS603	6	200	1.1	10	150	RS-6
RS604	6	400	1.1	10	150	RS-6
RS605	6	600	1.1	10	150	RS-6
RS606	6	800	1.1	10	150	RS-6
RS607	6	1000	1.1	10	150	RS-6
RS801	8	50	1.1	10	150	RS-6
RS802	8	100	1.1	10	150	RS-6
RS803	8	200	1.1	10	150	RS-6
RS804	8	400	1.1	10	150	RS-6
RS805	8	600	1.1	10	150	RS-6
RS806	8	800	1.1	10	150	RS-6
RS807	8	1000	1.1	10	150	RS-6

RS401 THRU RS407

SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

This series is UL recognized component

MECHANICAL DATA

Case: Molded plastic body

Terminals: Plated leads solderable per MIL-STD-750,

Method 2026

Polarity: Polarity symbols marked on case

Mounting Position: Any

Weight:0.22 ounce, 6.21 grams

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	KBL005	KBL01	KBL02	KBL04	KBL06	KBL08	KBL10	KBL005
	SYMBOLS	RS401	RS402	RS403	RS404	RS405	RS406	RS407	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward TC=50 C(Note 2) output rectified current at TA=50 C(Note 3)	I(AV)	4 3							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150							Amps
Rating for Fusing(t<8.3ms)	I²t	166							A²s
Maximum instantaneous forward voltage drop per leg at 4.0A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	10 1000							uA
Typical Junction Capacitance (Note 1)	CJ	105							pF
Typical Thermal Resistance (Note 2)	RθJA	20							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.

2.Unit mounted on 3.0” x 3.0” x 0.11” thick(7.5x7.5x0.3cm) Al. plate.

3.P.C.Board mounted with 0.5” x0.5”(12x12mm) copper pads,0.375”(9.5mm) lead length.

CHARACTERISTIC CURVES
