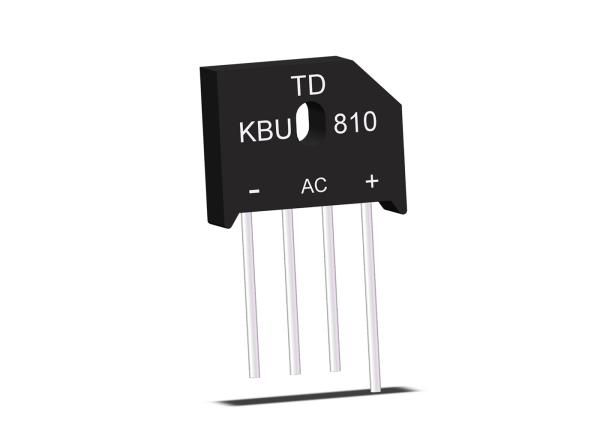

8A 600V Bridge Rectifier Diode KBU 606 KBU810 KBU808 KBU806 KBU1010 KBU1006 KBU1506 KBU2510

Silicon Bridge Rectifier Diode KBU606 KBU810 KBU808 KBU806 KBU1010 KBU1006 KBU1506 KBU2510

KBU SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 4 to 35 Ampere

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

This series is UL recognized component

MECHANICAL DATA

Case: Molded plastic body

Terminals: Plated leads solderable per MIL-STD-750,

Method 2026

Polarity: Polarity symbols marked on case

Mounting:Thru hole for #6 serew,5in.-lbs. torque max.

Weight:0.27 ounce, 7.59 grams

DIMENSION

DATASHEET

Type	Forward current	Reverse voltage	Forward voltage		Reverse current	Forward surge current
	IAV	VRRM	VF	@IF	IR	IFSM
	A	V	V	A	uA	A
KBU4005/KBU4A	4	50	1.1	4	10	150
KBU401/KBU4B	4	100	1.1	4	10	150
KBU402/KBU4D	4	200	1.1	4	10	150
KBU404/KBU4G	4	400	1.1	4	10	150
KBU406/KBU4J	4	600	1.1	4	10	150
KBU408/KBU4K	4	800	1.1	4	10	150
KBU410/KBU4M	4	1000	1.1	4	10	150
KBU6005/KBU6A	6	50	1.1	6	10	150
KBU601/KBU6B	6	100	1.1	6	10	150
KBU602/KBU6D	6	200	1.1	6	10	150
KBU604/KBU6G	6	400	1.1	6	10	150
KBU606/KBU6J	6	600	1.1	6	10	150
KBU608/KBU6K	6	800	1.1	6	10	150
KBU610/KBU6M	6	1000	1.1	6	10	150
KBU8005/KBU8A	8	50	1.1	8	10	150
KBU801/KBU8B	8	100	1.1	8	10	150
KBU801/KBU8D	8	200	1.1	8	10	150
KBU801/KBU8G	8	400	1.1	8	10	150
KBU801/KBU8J	8	600	1.1	8	10	150
KBU801/KBU8K	8	800	1.1	8	10	150
KBU801/KBU8M	8	1000	1.1	8	10	150
KBU10005/KBU10A	10	50	1.1	5	10	250
KBU1001/KBU10B	10	100	1.1	5	10	250
KBU1002/KBU10D	10	200	1.1	5	10	250
KBU1004/KBU10G	10	400	1.1	5	10	250
KBU1006/KBU10J	10	600	1.1	5	10	250
KBU1008/KBU10K	10	800	1.1	5	10	250
KBU1010/KBU10M	10	1000	1.1	5	10	250
KBU15005/KBU15A	15	50	1.1	7.5	10	300
KBU1501/KBU15B	15	100	1.1	7.5	10	300
KBU1502/KBU15D	15	200	1.1	7.5	10	300
KBU1504/KBU15G	15	400	1.1	7.5	10	300
KBU1506/KBU15J	15	600	1.1	7.5	10	300
KBU1508/KBU15K	15	800	1.1	7.5	10	300
KBU1510/KBU15M	15	1000	1.1	7.5	10	300
KBU25005/KBU25A	25	50	1.1	12.5	10	400
KBU2501/KBU25B	25	100	1.1	12.5	10	400
KBU2502/KBU25D	25	200	1.1	12.5	10	400
KBU2504/KBU25G	25	400	1.1	12.5	10	400
KBU2506/KBU25J	25	600	1.1	12.5	10	400
KBU2508/KBU25K	25	800	1.1	12.5	10	400
KBU2510/KBU25M	25	1000	1.1	12.5	10	400
KBU35005/KBU35A	35	50	1.1	17.5	10	400
KBU3501/KBU35B	35	100	1.1	17.5	10	400
KBU3502/KBU35D	35	200	1.1	17.5	10	400
KBU3504/KBU35G	35	400	1.1	17.5	10	400
KBU3506/KBU35J	35	600	1.1	17.5	10	400
KBU3508/KBU35K	35	800	1.1	17.5	10	400
KBU3510/KBU35M	35	1000	1.1	17.5	10	400

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	KBU8005	KBU801	KBU802	KBU804	KBU806	KBU808	KBU810	UNITS
	SYMBOLS	KBU8A	KBU8B	KBU8D	KBU8G	KBU8J	KBU8K	KBU8M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward TA=100 C(Note 2) output rectified current at TA=45 C(Note 2)	I(AV)	8 6							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150							Amps
Rating for Fusing(t<8.3ms)	I²t	373							A²s
Maximum instantaneous forward voltage drop per leg at 8.0A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	10 1000							uA
Typical Junction Capacitance (Note 1)	CJ	200							pF
Typical Thermal Resistance (Note 2)	RθJA	5							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

CHARACTERISTIC CURVES.
