GBU808 GBU 605 GBU606 GBU405 Bridge Rectifier 6A GBU1510 GBU1508

Silicon Bridge Rectifier Diode GBU405 GBU606 GBU605 GBU808 GBU1510 GBU1508

GBU SILICON BRIDGE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 2 to 35 Ampere

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Ideal for printed circuit boards

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

This series is UL recognized component

Glass passivated chip junction

MECHANICAL DATA

Case: Molded plastic body

Terminals: Plated leads solderable per MIL-STD-750,

Method 2026

Polarity: Polarity symbols marked on case

Mounting Position: Any

Weight:0.15 ounce, 4 grams

DIMENSION

DATASHEET

Type	Forward current	Reverse voltage	Forward voltage		Reverse current	Forward surge current
	IAV	VRRM	VF	@IF	IR	IFSM
	A	V	V	A	uA	A
GBU2005/GBU2A	2	50	1.1	2	5	60
GBU201/GBU2B	2	100	1.1	2	5	60
GBU202/GBU2D	2	200	1.1	2	5	60
GBU204/GBU2G	2	400	1.1	2	5	60
GBU206/GBU2J	2	600	1.1	2	5	60
GBU208/GBU2K	2	800	1.1	2	5	60
GBU210/GBU2M	2	1000	1.1	2	5	60
GBU4005/GBU4A	4	50	1.1	4	5	120
GBU401/GBU4B	4	100	1.1	4	5	120
GBU402/GBU4D	4	200	1.1	4	5	120
GBU404/GBU4G	4	400	1.1	4	5	120
GBU406/GBU4J	4	600	1.1	4	5	120
GBU408/GBU4K	4	800	1.1	4	5	120
GBU410/GBU4M	4	1000	1.1	4	5	120
GBU6005/GBU6A	6	50	1.1	6	5	175
GBU601/GBU6B	6	100	1.1	6	5	175
GBU602/GBU6D	6	200	1.1	6	5	175
GBU604/GBU6G	6	400	1.1	6	5	175
GBU606/GBU6J	6	600	1.1	6	5	175
GBU608/GBU6K	6	800	1.1	6	5	175
GBU610/GBU6M	6	1000	1.1	6	5	175
GBU8005/GBU8A	8	50	1.1	8	5	200
GBU801/GBU8B	8	100	1.1	8	5	200
GBU801/GBU8D	8	200	1.1	8	5	200
GBU801/GBU8G	8	400	1.1	8	5	200
GBU801/GBU8J	8	600	1.1	8	5	200
GBU801/GBU8K	8	800	1.1	8	5	200
GBU801/GBU8M	8	1000	1.1	8	5	200
GBU10005/GBU10A	10	50	1.1	5	10	250
GBU1001/GBU10B	10	100	1.1	5	10	250
GBU1002/GBU10D	10	200	1.1	5	10	250
GBU1004/GBU10G	10	400	1.1	5	10	250
GBU1006/GBU10J	10	600	1.1	5	10	250
GBU1008/GBU10K	10	800	1.1	5	10	250
GBU1010/GBU10M	10	1000	1.1	5	10	250
GBU15005/GBU15A	15	50	1.1	7.5	10	250
GBU1501/GBU15B	15	100	1.1	7.5	10	250
GBU1502/GBU15D	15	200	1.1	7.5	10	250
GBU1504/GBU15G	15	400	1.1	7.5	10	250
GBU1506/GBU15J	15	600	1.1	7.5	10	250
GBU1508/GBU15K	15	800	1.1	7.5	10	250
GBU1510/GBU15M	15	1000	1.1	7.5	10	250
GBU25005/GBU25A	25	50	1.1	12.5	10	350
GBU2501/GBU25B	25	100	1.1	12.5	10	350
GBU2502/GBU25D	25	200	1.1	12.5	10	350
GBU2504/GBU25G	25	400	1.1	12.5	10	350
GBU2506/GBU25J	25	600	1.1	12.5	10	350
GBU2508/GBU25K	25	800	1.1	12.5	10	350
GBU2510/GBU25M	25	1000	1.1	12.5	10	350
GBU35005/GBU35A	35	50	1.1	17.5	10	350
GBU3501/GBU35B	35	100	1.1	17.5	10	350
GBU3502/GBU35D	35	200	1.1	17.5	10	350
GBU3504/GBU35G	35	400	1.1	17.5	10	350
GBU3506/GBU35J	35	600	1.1	17.5	10	350
GBU3508/GBU35K	35	800	1.1	17.5	10	350
GBU3510/GBU35M	35	1000	1.1	17.5	10	350

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	GBU6005	GBU601	GBU602	GBU604	GBU606	GBU608	GBU610	UNITS
	SYMBOLS	GBU6A	GBU6B	GBU6D	GBU6G	GBU6J	GBU6K	GBU6M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TA=50 C(Note 2)	I(AV)	6							Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	175							Amps
Rating for Fusing(t<8.3ms)	I²t	120							A²s
Maximum instantaneous forward voltage drop per leg at 6.0A	VF	1.1							Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	5 500							uA
Typical Junction Capacitance (Note 1)	CJ	80							pF
Typical Thermal Resistance (Note 2)	RθJA	1.5							℃/W
Operating temperature range	TJ	-55 to +150							℃
Storage temperature range	TSTG	-55 to +150							℃

NOTES:

1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.

2.Unit mounted on 75mm x 75mm x 1.6mm Cu Plate Heatsink

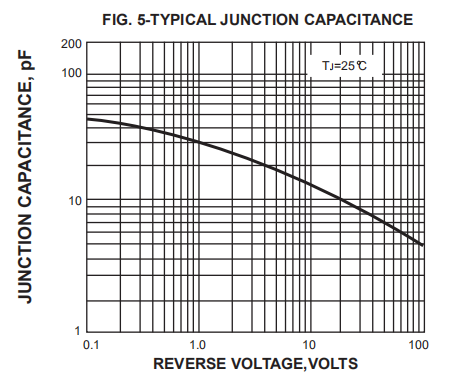

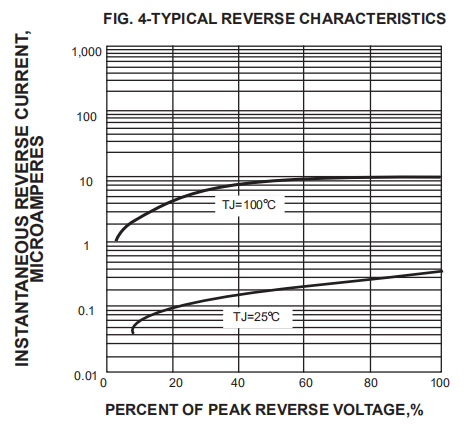

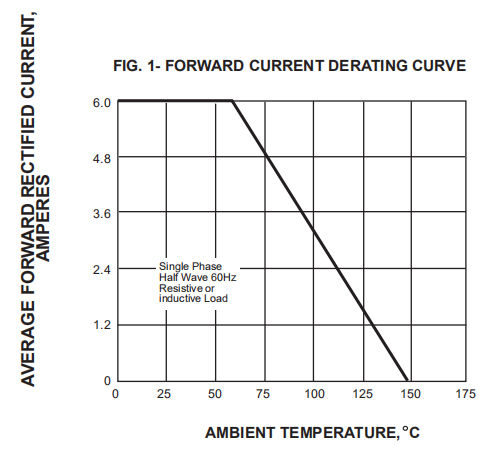

CHARACTERISTIC CURVES.
