800v 600v 1a SMD Fast Recovery Diode SMD SOD 123FL R1A THRU R1M Diode

SMD Fast Recovery Rectifier Diode SOD-123FL R1A THRU R1M 1A 50V to 1000V Molded Plastic

R1A THRU R1M

SURFACE MOUNT FAST RECOVERY RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere

Dimension

Features

The plastic package carries UL Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief, ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:260℃/10 seconds at terminals

Mechanical Characteristics

Case: JEDEC SOD-123FL molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.006 ounce, 0.02 grams

Product Datasheet

Type	Current	Package
F1 THRU F7	1	SOD-123FL
R1A THRU R1M	1	SOD-123FL
SOD1F1 THRU SOD1F7	1	SOD-123FL
FR1A THRU FR1M	1	SMA
RS1A THRU RS1M	1	SMA
RS1AF THRU RS1MF	1	SMAF

Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	R1A	R1B	R1D	R1G	R1J	R1K	R1M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	VOLTS
Maximum average forward rectified current at TL=75 C	I(AV)	1							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	30							Amps
Maximum instantaneous forward voltage at 1.0A	VF	1.3							VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃	IR	5.0 50.0							µA
Maximum reverse recovery time (NOTE 1)	trr	150				250	500		ns
Typical junction capacitance (NOTE 2)	CJ	15.0							pF
Typical thermal resistance (NOTE 23)	RθJA	95.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150							℃

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

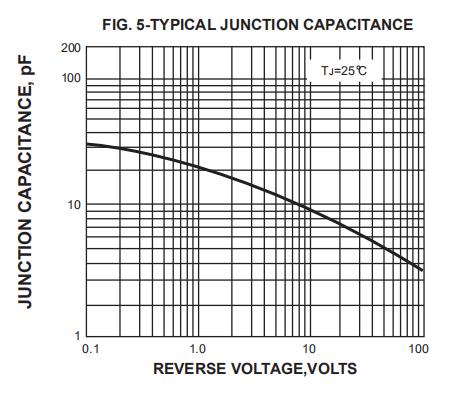

Characteristic Curves
