RS3M High Voltage Fast Recovery Diode 3a SMD DO 214AB Package

RS3M 3 Ampere 1000 Volt Silicon Fast Recovery Rectifier Diode in SMD DO-214AB Package

RS3A THRU RS3M

SURFACE MOUNT FAST RECOVERY RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere

Mechanical Characteristics

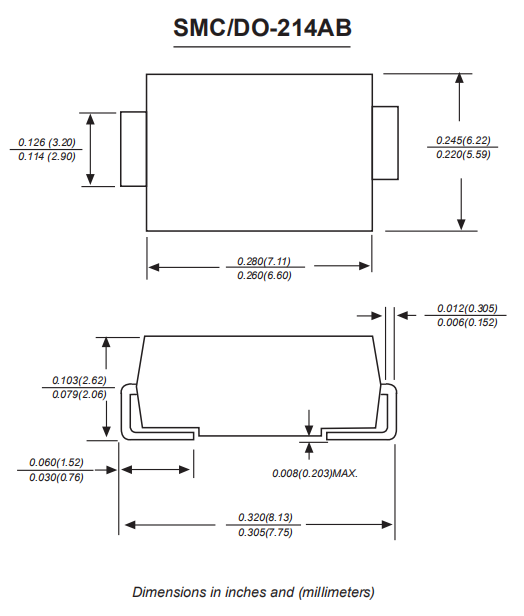

Case: JEDEC DO-214AB molded plastic body

Terminals: Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.007 ounce, 0.25grams

Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

For surface mounted applications

Fast switching for high efficiency

Low reverse leakage

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds at terminals

Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	RS3A	RS3B	RS3D	RS3G	RS3J	RS3K	RS3M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	VOLTS
Maximum average forward rectified current at TL=75 C	I(AV)	3							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	100							Amps
Maximum instantaneous forward voltage at 3.0A	VF	1.3							VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃	IR	5.0 50.0							µA
Maximum reverse recovery time (NOTE 1)	trr	150				250	500		ns
Typical junction capacitance (NOTE 2)	CJ	60.0							pF
Typical thermal resistance (NOTE 23)	RθJA	50.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150							℃

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

Characteristic Curves
