UF5402 UF5404 UF5408 Ultrafast Power Rectifier Diode 1000v 3a DO 27

3A 1000V DO-27 Through Hole Ultra Fast Recovery Rectifier Diode UF5402 UF5404 UF5408 Ammo Packaging

UF5400 THRU UF5408

ULTRA FAST RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	UF 4001	UF 4002	UF 4003	UF 4004	UF 4005	UF 4006	UF 4007	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	3.0							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150.0							Amps
Maximum instantaneous forward voltage at 6.0A	VF	1.0				1.7			Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10	IR	5.0 150.0							µA
Maximum reverse recovery time (NOTE 1)	trr	50				75			ns
Typical junction capacitance (NOTE 2)	CJ	45.0							pF
Typical thermal resistance (NOTE 3)	RθJA	20.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-55 to +150							℃

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

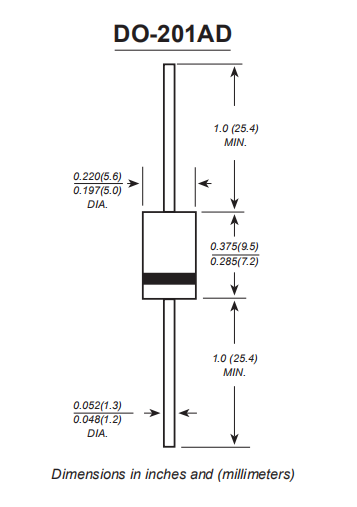

Product Drawing

FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Ultra fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

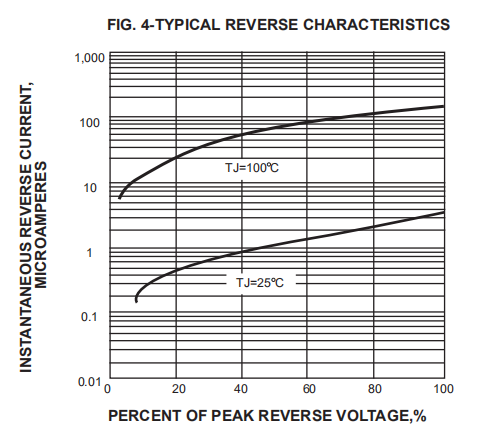

Characteristic Curves
