Drawing

FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Low forward voltage drop

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC TO-220AC

Terminals: Solderable per MIL-STD-202, Method 208

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.064 ounce, 1.81 grams

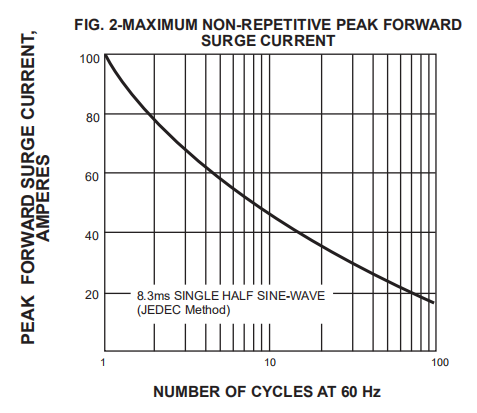

Characteristic Curves

Changzhou Trustec Company Limited, established in 2011 and located in changzhou city which is one of the most economically developed triangle area, is a professional manufacturer and supplier of semiconductor discrete device industry.

The company is focusing on designing, manufacturing and sales of various diode, triode, bridge rectifier and other semiconductor discrete devices, and has become an outstanding partner for various branded manufacturers

Main products include standard silicon rectifier diode, fast recovery rectifier diode, high efficiency rectifier diode, ultra fast recovery rectifier diode, super fast recovery rectifier diode, small signal high speed switching diode, schottky barrier rectifier diode, zener diode, TVS, DIAC, various bridge rectifier etc, annual capacity is up to 10,000,000,000pcs diodes and widely used in home appliances, power supply and charger, green lighting, network and communication, automotive electronics, smart meters and instruments etc areas.

The company thinks highly of technological innovation and talent forging, investments in new product and new technique development every year, as well as internal management innovation and transformation.

The company owns high standard equipments from domestic and abroad, through automatic, intelligentized and large-scale lean manufacturing, continuously optimize technique process, expend product range and reduce product volume.

The company insists on professional spirit and core advantage, devoted to be the one of the leading enterprises in semiconductor discrete device industry, create value for customers, provide platform for employees and make contribution for society.

You choose TD brand diodes, you choose your reliable supplier of diodes.
