    3.0a Surface Mount Schottky Barrier Rectifier 3A 40V 1N5822 Sk34 Smd Diode SMC

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : SK34
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

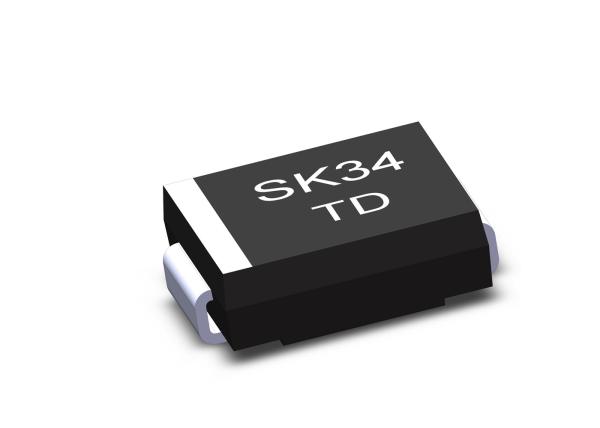

    3.0a Surface Mount Schottky Barrier Rectifier 3A 40V 1N5822 Sk34 Smd Diode SMC

    SK34 SMD Schottky Barrier Rectifier Diode 3A 40V Schottky Diode 1N5822 in SMC Package
    SS32 THR
    U SS320
    SK32 THRU SK320
    SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Volts
    Forward Current - 3.0 Ampere
    Package Outline Dimensions
    Mounting Pad Layout

    FEATURES

    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    For surface mounted applications
    Metal silicon junction,majority carrier conduction
    Low power loss,high efficiency
    Built-in strain relief,ideal for automated placement
    High forward surge current capability
    High temperature soldering guaranteed: 260 ℃/10 seconds at terminals
    MECHANICAL DATA
    Case: JEDEC DO-214AB molded plastic body
    Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight: 0.007 ounce, 0.25grams
    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    SYMBOLSSS32SS33SS34SS35SS36SS38SS310SS315SS320UNITS
    SK32SK33SK34SK35SK36SK38SK310SK315SK320
    Reverse VoltageVRRM203040506080100150200VOLTS
    Forward CurrentIAV3Amps
    Surge CurrentIFSM100Amps
    Forward VoltageVF0.550.700.850.95Volts
    Reverse CurrentIR0.50.2mA
    Operating TemperatureTJ-65 to +125-65 to +150
    Storage TemperatureTSTG-65 to +150

    RATINGS AND CHARACTERISTIC CURVES
