    Smd Diode Ss14 1n5819 1a Schottky Barrier Rectifier Diodes 40v DO 214AC

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : SS14
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

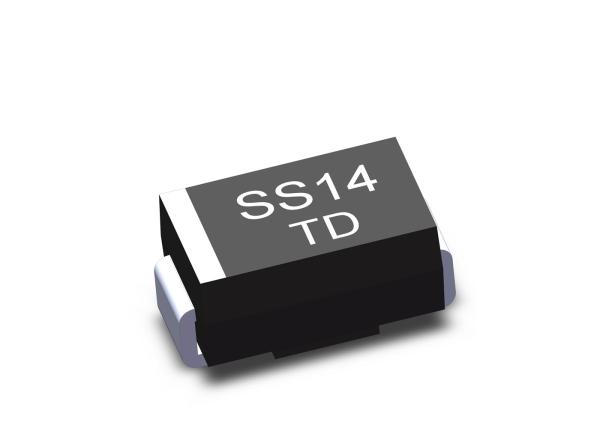

    Smd Diode Ss14 1n5819 1a Schottky Barrier Rectifier Diodes 40v DO 214AC

    1 AMP 40V Schottky Barrier Rectifier Diode 1N5819 in SMD Package SS14 DO-214AC SMA
    SS12 THRU SS120
    SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Vol
    ts
    Forward Current - 1.0 Ampere
    Features
    Metal silicon junction, majority carrier conduction
    High surge capability
    High temperature soldering guaranteed: 260°C/10 seconds
    High current capability, low forward voltage drop
    Guarding for over voltage protection
    RoHS Compliant
    Mechanical Data
    Case: SMA molded plastic
    Molding compound, UL flammability classification rating 94V-0
    Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102
    Polarity: Color band denotes cathode end
    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    SYMBOLSSS12SS13SS14SS15SS16SS18SS110SS115SS120UNITS
    Reverse VoltageVRRM203040506080100150200VOLTS
    Forward CurrentIAV1Amp
    Surge CurrentIFSM30Amps
    Forward VoltageVF0.450.550.700.850.95Volts
    Reverse CurrentIR0.50.2mA
    Operating TemperatureTJ-65 to +125-65 to +150

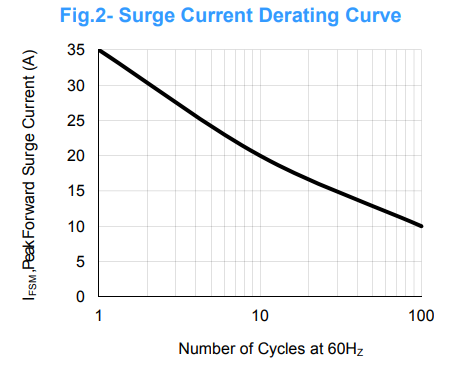

    Ratings and Characteristic Curves

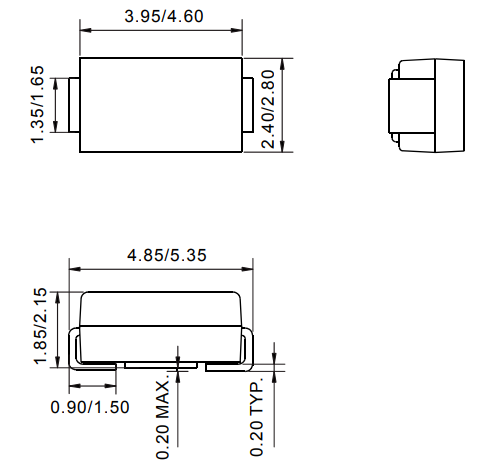

    Package Outline Dimensions
    Mounting Pad Layout
