    Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package

    5 AMP 40V 60V 100V SMD Schottky Barrier Rectifier Diode SS54 SS56 SS510 SMC Package
    SS52 THRU SS520
    SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
    Reverse Voltage - 20 to 200 Volts
    Forward Current - 5.0 Ampere

    FEATURES

    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    For surface mounted applications
    Metal silicon junction,majority carrier conduction
    Low power loss,high efficiency
    Built-in strain relief, ideal for automated placement
    High forward surge current capability
    High temperature soldering guaranteed: 260 C/10 seconds at terminals
    MECHANICAL DATA
    Case: JEDEC DO-214AB molded plastic body
    Terminals: leads solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight: 0.007 ounce, 0.25 grams
    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    SYMBOLSSS52SS53SS54SS55SS56SS58SS510SS515SS520UNITS
    Reverse VoltageVRRM203040506080100150200VOLTS
    Forward CurrentIAV5Amp
    Surge CurrentIFSM150Amps
    Forward VoltageVF0.450.550.700.850.95Volts
    Reverse CurrentIR0.50.2mA
    Operating TemperatureTJ-65 to +125-65 to +150

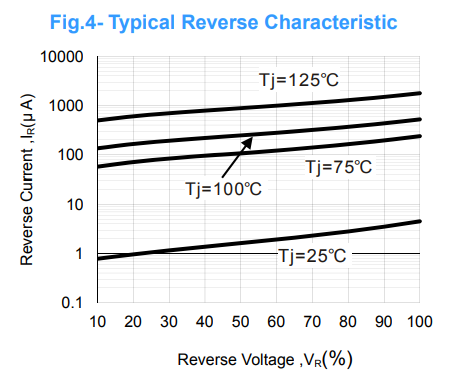

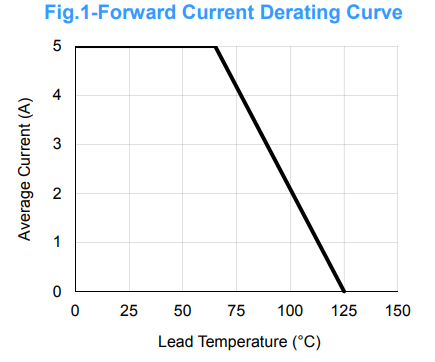

    RATINGS AND CHARACTERISTIC CURVES
