Surface Mount SMD Standard Rectifier Diode M7 S1M S2M S3M S5M S8M S10M SMA SMB SMC

Product Features

The plastic package carries UL Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief, ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:260℃/10 seconds at terminals

Glass passivated junction

Low forward voltage drop

RoHS Compliant

Mechanical Characteristics

Case: SMA(DO-214AC) package molded plastic body over passivated chip

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.0021 ounce, 0.059 grams

Absolute Maximum Ratings and Electrical Parameters

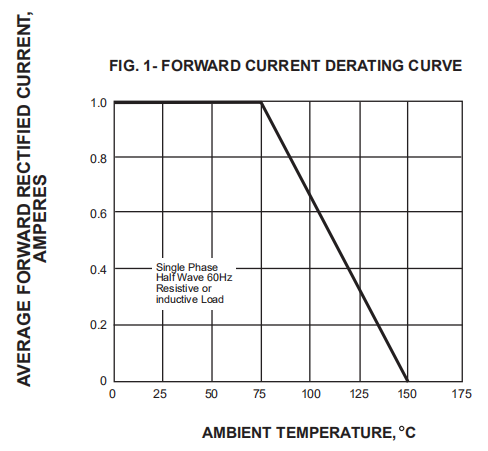

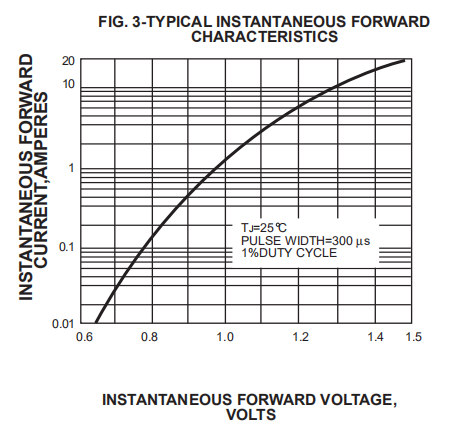

Rating And Characteristic Curves

Changzhou Trustec Company Limited, established in 2011 and located in changzhou city which is one of the most economically developed triangle area, is a professional manufacturer and supplier of semiconductor discrete device industry.

The company is focusing on designing, manufacturing and sales of various diode, triode, bridge rectifier and other semiconductor discrete devices, and has become an outstanding partner for various branded manufacturers

Main products include standard silicon rectifier diode, fast recovery rectifier diode, high efficiency rectifier diode, ultra fast recovery rectifier diode, super fast recovery rectifier diode, small signal high speed switching diode, schottky barrier rectifier diode, zener diode, TVS, DIAC, various bridge rectifier etc, annual capacity is up to 10,000,000,000pcs diodes and widely used in home appliances, power supply and charger, green lighting, network and communication, automotive electronics, smart meters and instruments etc areas.

The company thinks highly of technological innovation and talent forging, investments in new product and new technique development every year, as well as internal management innovation and transformation.

The company owns high standard equipments from domestic and abroad, through automatic, intelligentized and large-scale lean manufacturing, continuously optimize technique process, expend product range and reduce product volume.

The company insists on professional spirit and core advantage, devoted to be the one of the leading enterprises in semiconductor discrete device industry, create value for customers, provide platform for employees and make contribution for society.

You choose TD brand diodes, you choose your reliable supplier of diodes.
