3A 1000V S3M SMD Rectifier Diode Smc Do 214ab Footprint Sma SMB SMC SMAF SMBF SMCF Package

3 AMP 1000V SMD Standard Rectifier Diode S3M in SMA/SMB/SMC/SMAF/SMBF/SMCF Package

Main products

Standard/general purpose rectifier diode

Fast recovery diode

High efficiency diode

Ultra fast diode

Super fast diode

Switching diode

Schottky diode

Bridge rectifier

Zener diode

DIAC

TVS

S3A THRU S3M

SURFACE MOUNT GENERAL PURPOSE RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere

Product Features

The plastic package carries UL Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief, ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:260℃/10 seconds at terminals

Glass passivated junction

Low forward voltage drop

RoHS Compliant

Mechanical Characteristics

Case: JEDEC SMC/DO-214AB molded plastic body

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.007 ounce, 0.25grams

Absolute Maximum Ratings and Electrical Parameters

Type	Io	VRRM	IFSM	VF		IR		Package
Type	(A)	(V)	(A)	(V)	IF(A)	(uA)	VR(V)	Outline
S3AA	3	50	80	1.1	3	5	50	SMA
S3BA	3	100	80	1.1	3	5	100	SMA
S3DA	3	200	80	1.1	3	5	200	SMA
S3GA	3	400	80	1.1	3	5	400	SMA
S3JA	3	600	80	1.1	3	5	600	SMA
S3KA	3	800	80	1.1	3	5	800	SMA
S3MA	3	1000	80	1.1	3	5	1000	SMA
S3AAF	3	50	80	1.1	3	5	50	SMAF
S3BAF	3	100	80	1.1	3	5	100	SMAF
S3DAF	3	200	80	1.1	3	5	200	SMAF
S3GAF	3	400	80	1.1	3	5	400	SMAF
S3JAF	3	600	80	1.1	3	5	600	SMAF
S3KAF	3	800	80	1.1	3	5	800	SMAF
S3MAF	3	1000	80	1.1	3	5	1000	SMAF
S3AB	3	50	90	1.1	3	5	50	SMB
S3BB	3	100	90	1.1	3	5	100	SMB
S3DB	3	200	90	1.1	3	5	200	SMB
S3GB	3	400	90	1.1	3	5	400	SMB
S3JB	3	600	90	1.1	3	5	600	SMB
S3KB	3	800	90	1.1	3	5	800	SMB
S3MB	3	1000	90	1.1	3	5	1000	SMB
S3ABF	3	50	90	1.1	3	5	50	SMBF
S3BBF	3	100	90	1.1	3	5	100	SMBF
S3DBF	3	200	90	1.1	3	5	200	SMBF
S3GBF	3	400	90	1.1	3	5	400	SMBF
S3JBF	3	600	90	1.1	3	5	600	SMBF
S3KBF	3	800	90	1.1	3	5	800	SMBF
S3MBF	3	1000	90	1.1	3	5	1000	SMBF
S3A	3	50	90	1.1	3	5	50	SMC
S3B	3	100	90	1.1	3	5	100	SMC
S3D	3	200	90	1.1	3	5	200	SMC
S3G	3	400	90	1.1	3	5	400	SMC
S3J	3	600	90	1.1	3	5	600	SMC
S3K	3	800	90	1.1	3	5	800	SMC
S3M	3	1000	90	1.1	3	5	1000	SMC
S3AF	3	50	90	1.1	3	5	50	SMCF
S3BF	3	100	90	1.1	3	5	100	SMCF
S3DF	3	200	90	1.1	3	5	200	SMCF
S3GF	3	400	90	1.1	3	5	400	SMCF
S3JF	3	600	90	1.1	3	5	600	SMCF
S3KF	3	800	90	1.1	3	5	800	SMCF
S3MF	3	1000	90	1.1	3	5	1000	SMCF

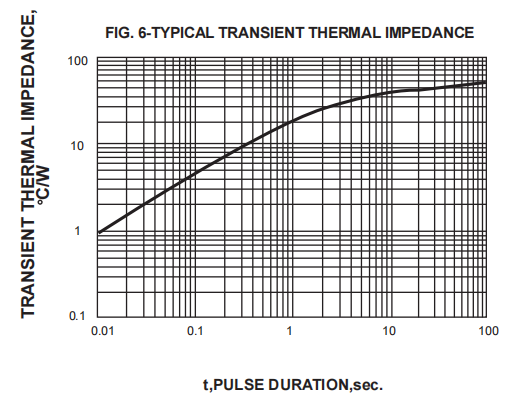

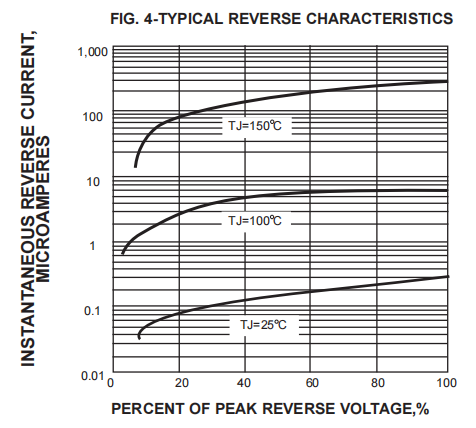

Rating And Characteristic Curves
