HER601 THRU HER608 High Efficiency Fast Recovery Rectifier Diodes 6A 50V R 6

6 Ampere 50V to 1000V R-6 Axial High Efficiency Rectifier Diode HER601 THRU HER608

HER601 THRU HER608

HIGH EFFICIENCY RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere

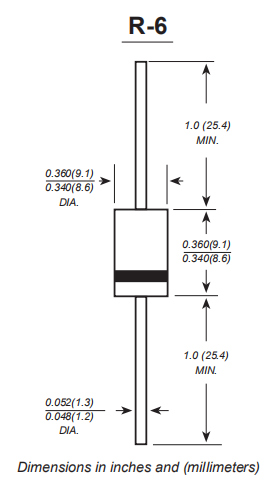

Product Size

Technical Parameters

Type	Current	Package
1H1 THRU 1H8	1A	R-1
HER101S THRU HER108S	1A	A-405
HER101 THRU HER108	1A	DO-41
HER151 THRU HER158	1.5A	DO-15
HER201 THRU HER208	2A	DO-15
HER251 THRU HER258	2.5A	R-3
HER301 THRU HER308	3A	DO-27
HER501 THRU HER508	5A	DO-27
HER601 THRU HER608	6A	R-6

MAXIMUM RATINGS

	SYMBOLS	HER 601	HER 602	HER 603	HER 604	HER 605	HER 606	HER 607	HER 608	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	6.0								Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	200.0								Amps
Maximum instantaneous forward voltage at 6.0A	VF	1.0			1.3		1.7			Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10	IR	10.0 200.0								µA
Maximum reverse recovery time (NOTE 1)	trr	50					70			ns
Typical junction capacitance (NOTE 2)	CJ	100.0					65.0			pF
Typical thermal resistance (NOTE 3)	RθJA	12.0								℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150								℃

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

Product Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

High speed switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Mechanical Data

Case: R-6 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.072 ounce, 2.05 grams

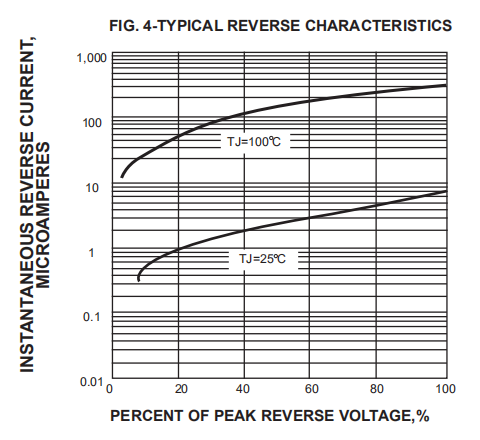

RATINGS AND CHARACTERISTIC CURVES
