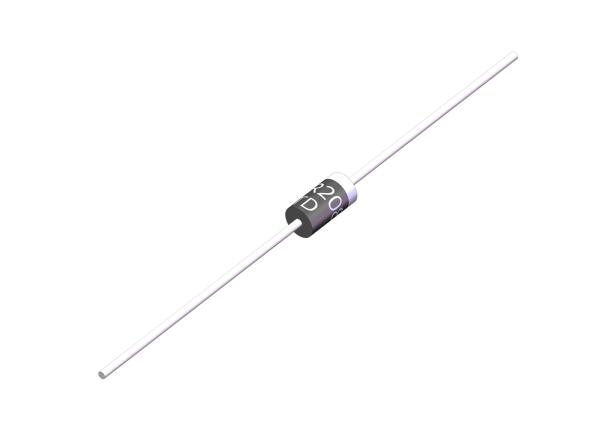

1000V 2 Amp HER208 High Efficiency Rectifier Diode Axial DO 15 Through Hole T B

Plastic Silicon Axial High Efficiency Rectifier Diode HER208 2A 1000V DO-15 Through Hole T/B

HER201 THRU HER208

HIGH EFFICIENCY RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere

MAXIMUM RATINGS

	SYMBOLS	HER 201	HER 202	HER 203	HER 204	HER 205	HER 206	HER 207	HER 208	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	600	800	1000	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	420	560	700	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	600	800	1000	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	2.0								Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	60.0								Amps
Maximum instantaneous forward voltage at 6.0A	VF	1.0			1.3		1.7			Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃10		5.0 100								µA
Maximum reverse recovery time (NOTE 1)	trr	50					70			ns
Typical junction capacitance (NOTE 2)	CJ	30.0					20.0			pF
Typical thermal resistance (NOTE 3)	RθJA	50.0								℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +150								℃

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%

Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

Product Size

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 0

FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

High speed switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-15 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.014 ounce, 0.40 grams

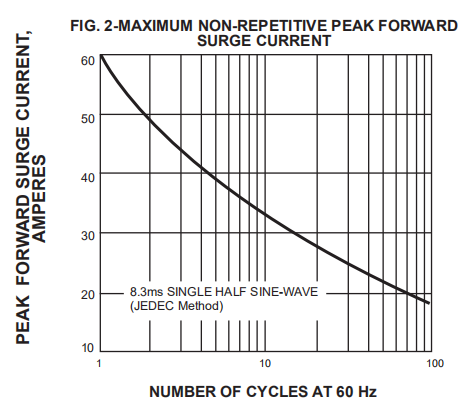

Characteristic Curves

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 1

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 2

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 3

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 4

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 5

2 Ampere 800 Volts Silicon High Efficiency Rectifier Diode HER207 DO-15 3000PCS Tape Box Packaging 6
